Power: 220V 50Hz 100W
Weight: 270 kg – 2 wooden cases
Dimensions: 880 x 740 x 1460 mm
500 x 490 x 1070 mm (L x W x H)
Measuring speed: 520±20 mm/min
Measuring height: 750 mm
Measuring accuracy: 0.1 mm
Graduated cylinder internal diameter: 289±1 mm
Plunger and Measuring Rod diameter: 285 mm, weight: 94.3g
Air velocity: (310±50) L/min
Equipped with printer
Standards: BSEN12130, JISL1903,FZ/T80001, GB/T14272-2011, GB/T10288, IDFB－FP

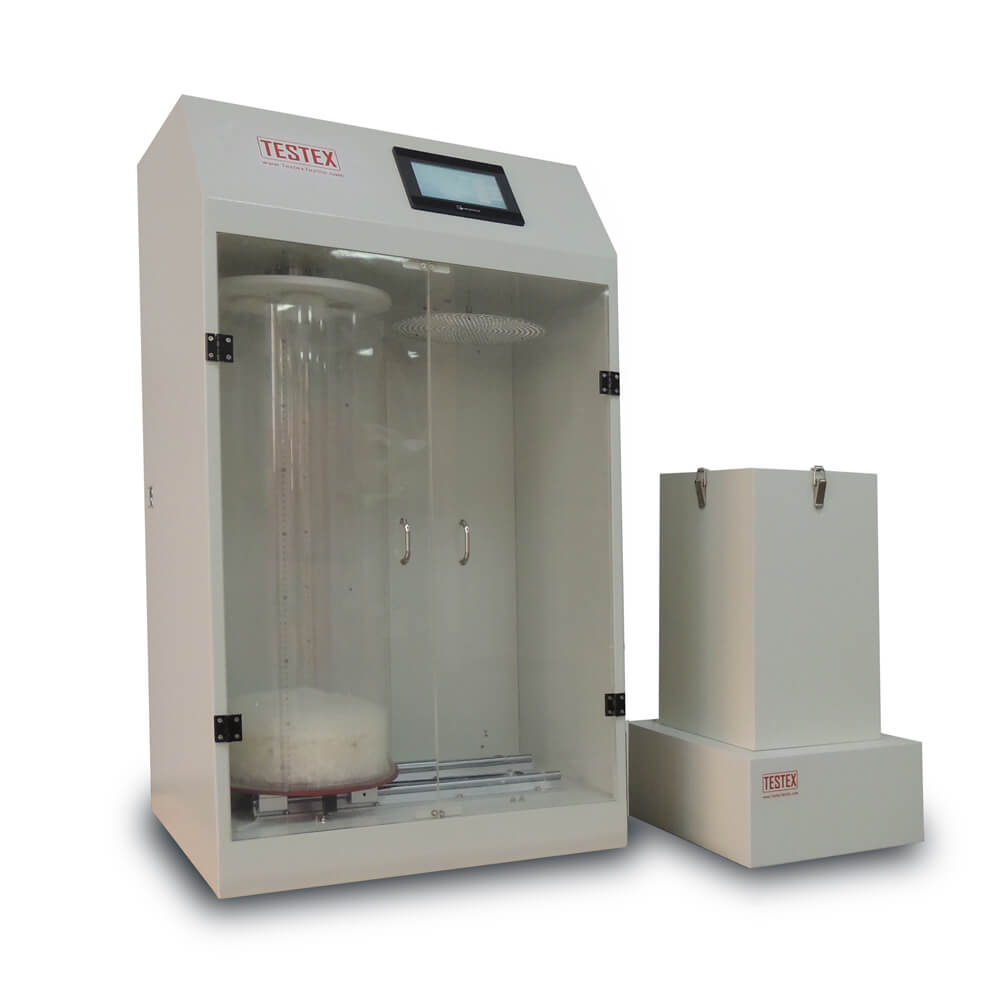

Feather & Down Filling Power Tester, is to determine the filling power (massic volume) of feather and down. Pressure on the sample by dropping the platen is applied to the filling material at a constant speed and the level of the platen is noted after a stipulated time. The massic volume is calculated through the height and the known diameter of the graduated cylinder.
Functions
Automatic blowing system
Individual filter system design
DC gear motor driving
SCM controlling
Touch screen operation
Automatically lower done the platen and display the height
