Shutdown: Shutdown
Topology: Full Bridge, Half Bridge, Push-Pull
Fall Time: 10 ns
Isolation: Isolated
Rise Time: 45 ns
Unit Weight: 56.100 mg
Mounting Style: SMD/SMT
Output Current: 2 A
Output Voltage: 7.8 V
Development Kit: LM5036EVM-294
Duty Cycle - Max: 50 %
Number of Outputs: 2 Output
Moisture Sensitive: Yes
Switching Frequency: 200 kHz, 480 kHz

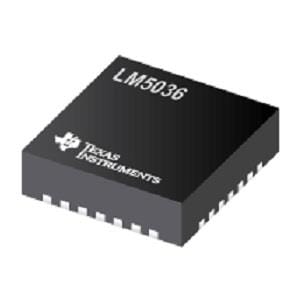

Description/Function: Half-Bridge PWM Controller
Operating Supply Current: 9 mA
Operating Supply Voltage: 8.5 V to 14 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
