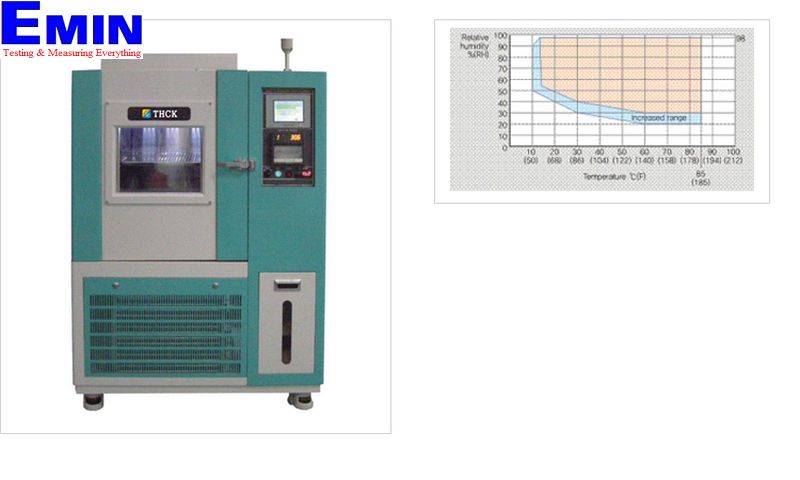

THCK THTC 10810-40 Thtc 10810-40 Temp. & Humidity Test Chamber (-40℃ ~ 120℃, 30% ~ 98%, 800 L)

Name: THCK THTC 10810-40 Thtc 10810-40 Temp. & Humidity Test Chamber (-40℃ ~ 120℃, 30% ~ 98%, 800 L)
Brand: THCK

ManufacturerTHCK(View more products from this manufacturer)

ModelTHTC 10810-40

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Manufacturer: THCK
Made in Korea
Model: THCK - THTC 10810-40
- Test Chamber Size: 1,000×800×1,000 (800Liters)
- Temperature Control Range: -40℃ ~ 120℃
- Humidity control Range: 30% ~ 98%
- Temperature & Humidity Deviation: ±0.5℃, ±1.0%
- Temperature & Humidity Uniformity: ±1.5℃, ±2.5%
- Temperature Heating Rate (20℃ ~ 120℃): More than 2℃ / 1 minute
- Temperature Descent Rate (20℃ ~ -60℃): More than 1℃ / 1 minute
- Internal Material: Stainless Steel SUS 304 1.0mm
- External Material: SS41 1.2mm Powder Coated Steel Plate
- External Size (W × D × H mm): 1575×1365×2200
- Controller: Model TH 500 HANYOUNG NUX 5,7"Color LCD Screen(Touch Panel Type), 300Patterns(6,000 Segments),
Digital Input 8 Contacts, Digital Output 20 Contacts, Communication(RS232 & RS485/422)
Standard Installed, MADE IN KOREA
- Recorder: ModelSR 10006 (Option) 6Channels YOKOGAWA ELECTRIC CORPORATION, MADE IN JAPAN
- Refrigerator & Refrigerant:COPELAND Scroll Compressors, MADE IN U.S.A. Refrigerants: R-22a, R-23a
+ Low temp. : 3HP×2
+ High temp. : 1HP×1
- Refrigeration Method: Mechanical Compression Refrigeration Type
- Safety Device: Overheating Protector, Earth Leakage Breaker, Motor Overload Protector
- Convenient Specifications: Test Checking Hole(Left of the Machine) Diameter 50mm, Viewing Window 380mm x 380mm, Chamber Inside LED Lamp, Chamber Shelf (SUS 304 Hole Punched Plate) 2eas
- Power Supply: AC 220VOLTS, 3PHASES, 60Hz(or 50Hz)/ 18Kw

1.TEMPERATURE –40℃ ~ 120℃ (HUMIDITY 30% ~ 98%)

	THCK - THTC 556-40	THCK - THTC 868-40	THCK - THTC 10810-40	THCK - THTC 101010-40
Test Chamber Size (W × D × H in mm)	500×500×600 (150Liters)	800×600×800 (384Liters)	1,000×800×1,000 (800Liters)	1,000×1,000×1,000 (1,000Liters)
Temperature Control Range	-40℃ ~ 120℃
Humidity control Range	30% ~ 98%
Temperature & Humidity Deviation	±0.5℃, ±1.0%
Temperature & Humidity Uniformity	±1.5℃, ±2.5%
Temperature Heating Rate(20℃~150℃)	More than 2℃ / 1 minute
Temperature Descent Rate(20℃~-40℃)	More than 1℃ / 1 minute
Internal Material	Stainless Steel SUS 304 1.0mm
External Material	Powder Coated Steel Plate SS 41 1.2mm
External Size (W × D × H in mm)	1120×1000×1640	1357×1065×2000	1575×1365×2200	1575×1565×2000
Controller Model: TH 500 HANYOUNG NUX	TH-500 5.7" Color LCD Screen(Touch Panel Type), 300Patterns(6,000 Segments), Digital Input 8 Contacts, Digital Output 20 Contacts, Communication(RS232 & RS485/422) Standard Installed, MADE IN KOREA
Recorder	Model: SR 10006 6Channels YOKOGAWA ELECTRIC CORPORATION, MADE IN JAPAN
Refrigerator & Refrigerant	COPELAND Scroll Compressors, MADE IN U.S.A. Refrigerants: R-22a, R-23a
Refrigerator & Refrigerant	Low temp. : 1/2HP×2 High temp. : 1/4HP×1	Low temp. : 1/2HP×2 High temp. : 3/4HP×1	Low temp. : 3HP×2 High temp. : 1HP×1	Low temp. : 5HP×1, 3HP×1 High temp. : 1HP×1
Safety Device	Overheating Protector, Earth Leakage Breaker, Motor Overload Protector
Refrigeration Method	Mechanical Compression Refrigeration Type
Convenient Specifications	Test Checking Hole(Left of the Machine) Diameter 50mm, Viewing Window 380mm x 380mm, Chamber Inside LED Lamp, Chamber Shelf (SUS 304 Hole Punched Plate) 2eas
Power Supply, Power Consumption (Changable by the Customers Request)	AC 220VOLTS, 1PHASE, 60Hz(or 50Hz), Approx. 7Kww	AC 220VOLTS, 3PHASES, 60Hz(or 50Hz), Approx. 12Kw	AC 380VOLTS, 3PHASES, 60Hz(or 50Hz), Approx. 18Kw	AC 380VOLTS, 3PHASES, 60Hz(or 50Hz), Approx. 20Kw

2. TEMPERATURE –60℃ ~ 120℃ (HUMIDITY 30% ~ 98%)

	THCK - THTC 556-60	THCK - THTC 868-60	THCK - THTC 10810-60
Test Chamber Size (W × D × H in mm)	500×500×600 (150Liters)	800×600×800 (384Liters)	1,000×800×1,000 (800Liters)
Temperature Control Range	-60℃ ~ 120℃
Humidity control Range	30% ~ 98%
Temperature & Humidity Deviation	±0.5℃, ±1.0%
Temperature & Humidity Uniformity	±1.5℃, ±2.5%
Temperature Heating Rate (20℃ ~ 120℃)	More than 2℃ / 1 minute
Temperature Descent Rate (20℃ ~ -60℃)	More than 1℃ / 1 minute
Internal Material	Stainless Steel SUS 304 1.0mm
External Material	SS41 1.2mm Powder Coated Steel Plate
External Size (W × D × H in mm)	1078×965×1800	1375×1065×2000	1575×1365×2200
Controller Model: TH 500 HANYOUNG NUX	TH-500 5,7"Color LCD Screen(Touch Panel Type), 300Patterns(6,000 Segments), Digital Input 8 Contacts, Digital Output 20 Contacts, Communication(RS232 & RS485/422) Standard Installed, MADE IN KOREA
Recorder	Model: SR 10006 6Channels YOKOGAWA ELECTRIC CORPORATION, MADE IN JAPAN
Refrigerator & Refrigerant	COPELAND Scroll Compressors, MADE IN U.S.A. Refrigerants: R-22a, R-23a
	Low temp. : 1/2HP×2 High temp. : 1/4HP×1	Low temp. : 2HP×2 High temp. : 1HP×1	Low temp. : 2HP×2 High temp. : 1/2HP×1
Refrigeration Method	Mechanical Compression Refrigeration Type
Safety Device	Overheating Protector, Earth Leakage Breaker, Motor Overload Protector
Convenient Specifications	Test Checking Hole(Left of the Machine) Diameter 50mm, Viewing Window 380mm x 380mm, Chamber Inside LED Lamp, Chamber Shelf (SUS 304 Hole Punched Plate) 2eas
Power Supply, Power Consumption (Changable by the Customers Request)	AC 220VOLTS, 3PHASES, 60Hz (or 50Hz), Approx. 9Kw	AC 220VOLTS, 3PHASES, 60Hz (or 50Hz), Approx. 15Kw	AC 220VOLTS, 3PHASES, 60Hz (or 50Hz), Approx. 25Kw

3. OPTIONS

Customers Specification ;
A. -20℃ ~ 120℃ Equipment, Temperature Heating & Descent Rate per 1 minute.
B. Without YOKOGAWA Recorder
C. Body(Economy or Standard or Stainless Steel)
D. Controller(Customers Country Origin English Included Controller)
E. Chamber Size, Water Cooling Type
F. Outside Air-Conditioning Plant Type (For preventing room temperature rising and noise remove)
G. -60℃ ~ 120℃ Temperature Only Test Chamber(Without Humidity)
H. Electrical Part (Standard Location is Right Part of the Equipment) Top Location type
(In this case: THCK - THTC 556 : Net Size W × D × H 800 × 1000 × 1850mm) for Narrow Door of the Installation Place
