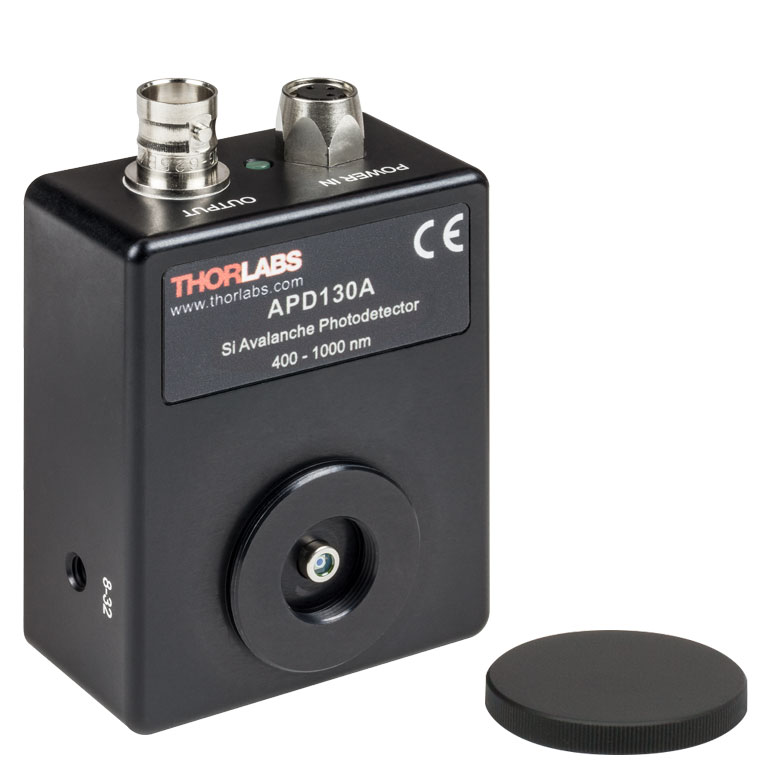

Key Specifications(a)
Detector Type: Silicon APD
Wavelength Range:400 - 1000 nm
Output Bandwidth (3 dB): DC - 50 MHz
Active Area Diameter: 1 mm
Typical Max Responsivity (M = 50): 25 A/W @ 800 nm
Transimpedance Gain: 50 kV/A (50 Ω Termination). 100 kV/A (High-Z Termination)
Max Conversion Gain(b): 2.5 × 10^6 V/W
M Factor: 50
M Factor Temperature Stability(a): ±2% (Typical); ±3% (Max)
Saturation Power (CW): 1.5 µW
Minimum NEP (DC - 50 MHz)(b): 0.20 pW/√Hz
Dimensions (H x W x D): 2.97" x 2.00" x 1.08"
(a) For a complete list of specifications and responsivity graphs, please see the manual. Data are valid at 23 ± 5 °C and 45% ± 15% relative humidity (non-condensing).
(b) At the Peak Responsivity Wavelength. For more information on how NEP is calculated, please see Thorlabs' Noise Equivalent Power White Paper.
