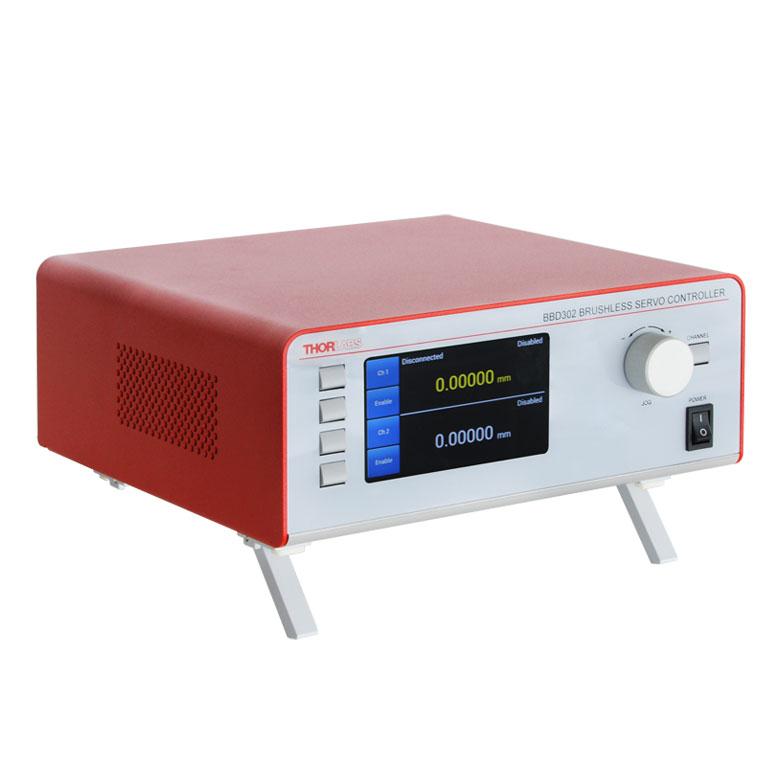

THORLABS BBD302 Benchtop Brushless DC Motor Controllers (2 kênh)

Number of Channels: 2

Drive Connector: 8 Pin DIN, Round, Female

Feedback Connector: 15-Pin D-Type, Female

Brushless Continuous Output: 2.5 A per Channel, 5.2 A Max All-Channel Total Output

Brushless Peak Output: 4.0 A per Channel, 5.2 A Max All-Channel Total Output

PWM Frequency: 40 kHz

Operating Modes: Position and Velocity

Control Algorithm: 16-Bit Digital PID Servo Loop with Velocity and Acceleration Feedforward

Velocity Profile: Trapezoidal/S-Curve

Position Count: 32 Bit

Position Feedback: Incremental Encoder

Encoder Bandwidth: 2.5 MHz (10 M Counts/sec)

Encoder Supply: 5 V

AUX Control Connector: 37-Pin D-Type Female (User Digital IO, 5 V O/P)

Front Panel Display: 4.3" Full-Color LCD, 480 x 272 Pixels

Input Power Requirements: 250 VA

Voltage: 100 to 240 VAC

Frequency: 47 to 63 Hz

Fuse: 3.15 A

Dimensions (W x D x H): 250.0 mm x 279.1 mm x 108.8 mm (9.84" x 10.99" x 4.28")

Mass (Weight): 1.70 kg (3.75 lbs)
