Light Source Wavelength(a): 632.8 nm ± 1 nmb

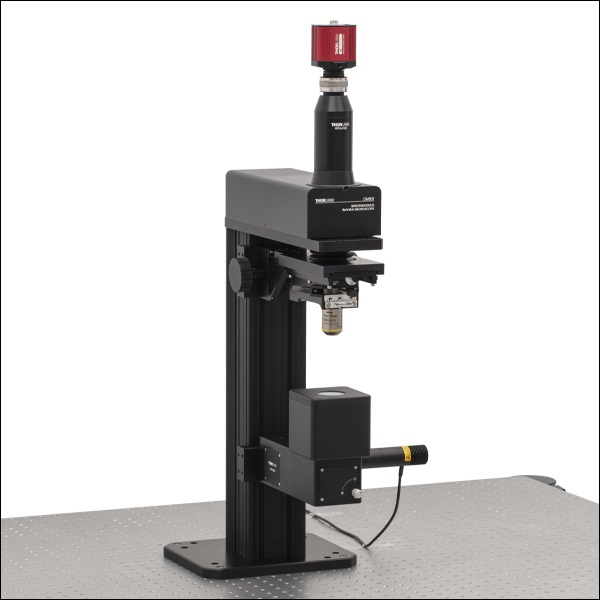

Microscope: Cerna® Series Microscope
Measurement Range:
- Retardance:
+Standard Retardance Range: 0 nm to 316 nm
+Low Retardance Range: 0 nm to 100 nm
- Azimuth: ±90°
Measurement Accuracy:
- Retardance
+ Standard Retardance Range: ±10 nm
+ Low Retardance Range: ±1 nm
- Azimuth:
+ Standard Retardance Range: ±3°
+ Low Retardance Range: ±1°
Measurement Rate: <20 s (Based on Default Camera Settings)
Field of View(c): 0.84 mm x 0.71 mm
Spatial Resolution(c): 1.055 μm
Interfaces: USB 2.0 and USB 3.0
Imager Resolution : 2448 x 2048 Pixels (H x V)
Dimensions (D x W x H): 469.6 mm x 354.1 mm x 836.3 mm (18.5" x 13.9" x 32.9")
Weight: 21.9 kg (48.3 lbs)
Operating Temperature: 0°C to 40°C
Storage Temperature: -15°C to 65°C
(a) Wavelength is customizable upon request. Contact Tech Support for details.
(b) The M625L4 LED is used in combination with a FL632.8-1 filter to provide a 633 nm light source.
(c) Field of view and spatial resolution are based on the standard configuration that includes a 10X objective (Item # N10X-PF).
