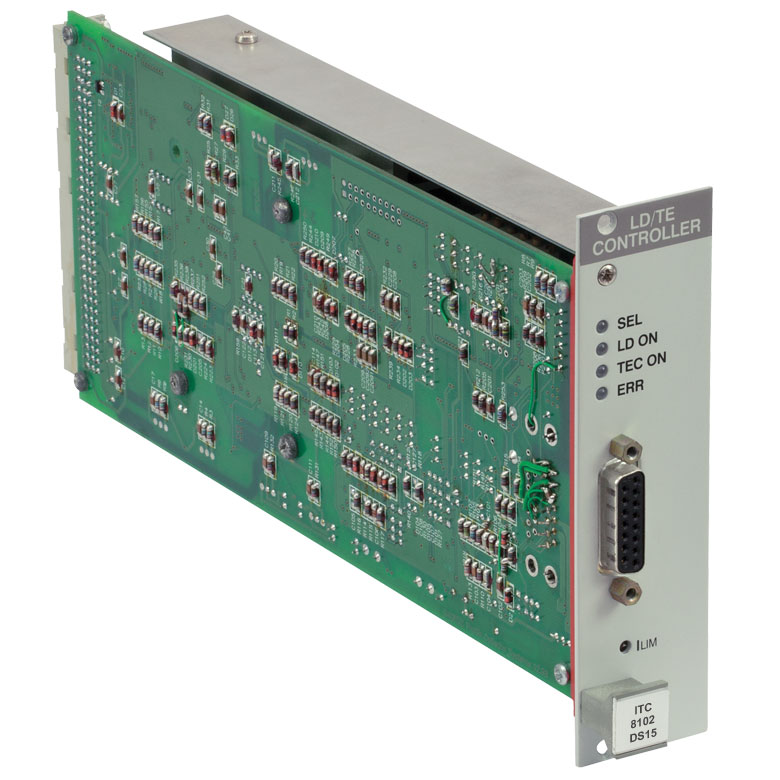

Laser Controller: Current Control
Control Range of Injection Current: 0 to ± 1 A
Compliance Voltage: >5 V
Setting Resolution: 15 µA
Accuracy (Full Scale): ±0.1%
Noise without Ripple (10 Hz to 10 MHz, RMS, Typ.): <10 µA
Ripple (50 Hz, RMS, Typ.): <1.5 µA
Transients (Processor, Typ.): <50 µA
Transients (Other, Typ.): <1 µA
Drift (24 hrs, at Constant Ambient Temperature, Typ.): <25 µA
Temperature Coefficient: <50 ppm/°C
Laser Controller: Power Control
Control Range of Photo Current: 10 µA to 2 mA
Reverse Bias Voltage: 0 to 10 V (adjustable)
Resolution Photo Current: 30 nA
Accuracy (Typ.): ±0.1%
Laser Controller: Current Limit
Setting Range: 0 to ≥ 1 A
Resolution: 30 µA
Accuracy: ±2 mA
Laser Voltage Measurement
Measurement Principle: 4-Wire (improves accuracy by compensating for cable resistance)
Measurement Range: 0 to 10 V
Resolution: 0.3 mV
Accuracy: ±5 mV
Temperature Controller: Output
Control Range of TEC Current: -2 A to +2 A
Compliance Voltage: >8 V
Maximum Output Power: 16 W
Measurement resolution of TEC Current: 0.07 mA
Measurement resolution of TEC Voltage: 0.3 mV
Noise and Ripple Typ.: <1 mA
Temperature Controller: Current Limit
Setting Range (20-Turn Pot): 0 to ≥2 A
Resolution: 0.5 mA
Setting Accuracy: ±20 mA
AD590, AD592, & LM335
Control Range: -12.375 to +90 °C
Resolution: 0.0015 °C
Accuracy: ±0.1 °C
Temperature Stability (Typ.): <0.001 °C
General Data
Width: 1 PRO8 Slot
LD/TEC-Connector: 15-Pin (LD & TEC)
Operating Temperature: 0 to 40 °C
Storage Temperature: -40 to +70 °C
All Data Valid at 23 ± 5°C and 45 ± 15% Rel. Humidity
