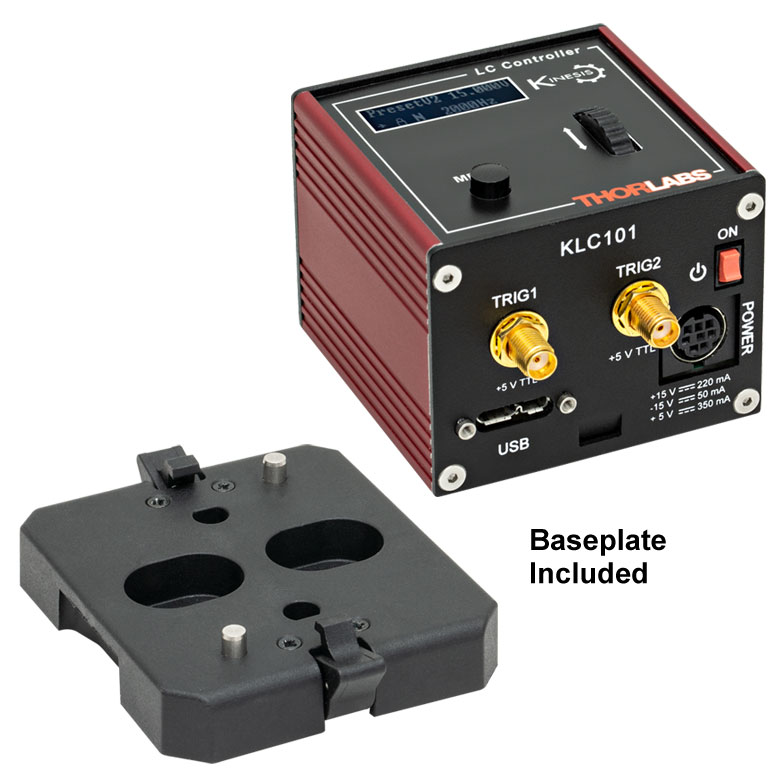

THORLABS KLC101 K-Cube™ Liquid Crystal Controller

Electrical Characteristics

Adjustable Output Voltage: 0 to ±25 V RMS

Voltage Resolution: 1.0 mV

Adjustable Output Frequency: 500 Hz to 10 kHz, 50% Duty Square Wave

Adjustable Internal Switching Frequency: 0.1 Hz to 150 Hz at 50% Duty Cycle

Slew Rate: 10 V/µs

DC Offset: ±10 mV

Warm Up Time: 30 Minutes

USB Port: USB 3.0 Micro B

K-Cube Controller Hub Connector: 26-Way ERNI

Maximum Ratings

Maximum External Input Voltage: 5 VDC

Maximum External Modulation: 150 Hz

Maximum Output Current: 50 mA

Operating Temperature Range: 10 to 40°C

Maximum Relative Humidity: 85%

Input Power Requirements

Voltage (Current)+15 V (220 mA), -15 V (50 mA), +5 V (350 mA)

General

Weight: 140 g (5.0 oz)

Housing Dimensions (W x D x H)(a): 60.0 mm x 60.0 mm x 46.7 mm (2.36" x 2.36" x 1.84")

(a) Excludes buttons, baseplate, and connectors.
