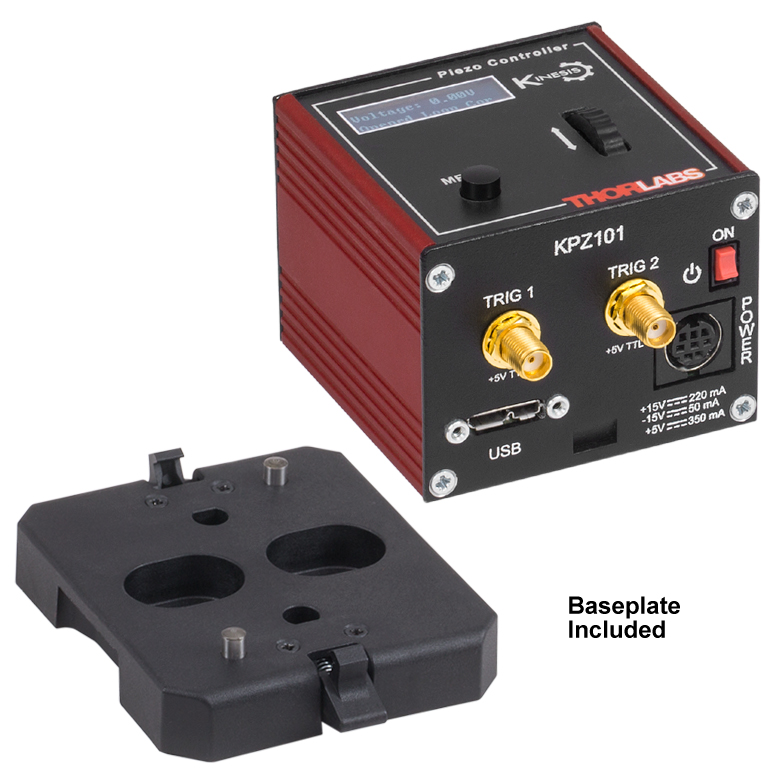

THORLABS KPZ101 Kinesis K-Cube Piezo Controller (0 - 150 V)

Piezoelectric Output

Drive Voltage (SMC Male): 0 - 150 V (SMC Male Connector)

Maximum Drive Current (Continuous): 7.5 mA

User Voltage Control: Digital Potentiometer (Resolution Selectable)

Stability: 100 ppm Over 24 hrs (After 30 min Warm-Up)

Output Noise: No Load: <5 mVRMS. 3.6 µF Load: <3 mVRMS

Typical Piezo Capacitance: 1 - 10 µF

Drive Bandwidth: 1 kHz (1 µF Load, 1 Vp-p)

Drive Input (SMA Female): 0 - 10 V

Output Monitor (SMA Female): 0 - 10 V

T-Cube Controller Hub Connector: 26-Way ERNI

General

Input Power Requirements: +15 V @ 220 mA. -15 V @ 50 mA. +5 V @ 350 mA

USB Connector Type: USB 3.0

USB Connection Speed: USB 1.1 Full Speed (12 Mbps)

Housing Dimensions(a) (W x D x H): 60.0 mm x 60.0 mm x 49.2 mm (2.36" x 2.36" x 1.94")

(a) Including Top Panel Controls
