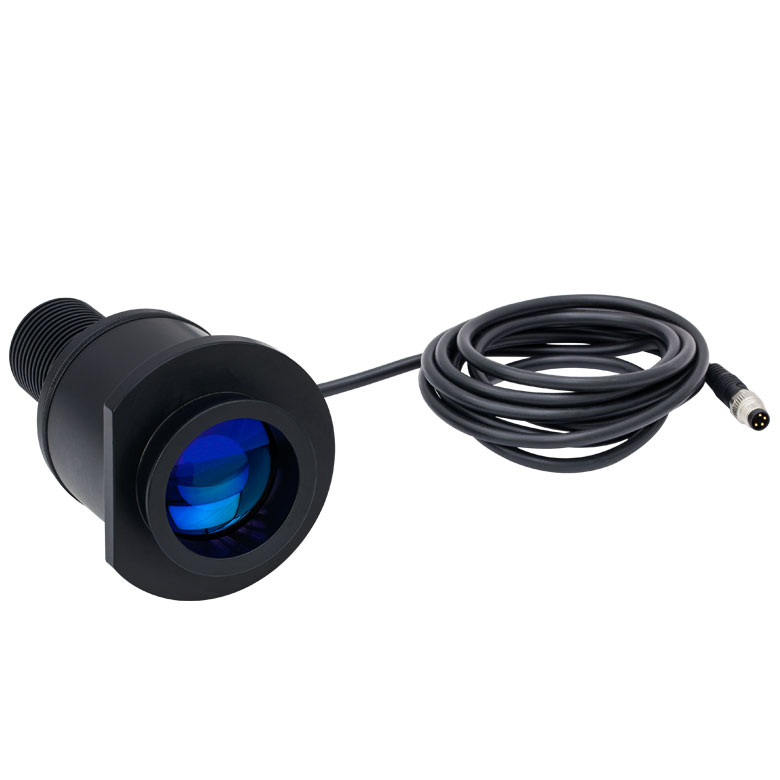

THORLABS M625L4-C2 Collimated LED (Red; 625 nm; 490 mW; 37 mm; Leica DMI)

Name: THORLABS M625L4-C2 Collimated LED (Red; 625 nm; 490 mW; 37 mm; Leica DMI)
Brand: THORLABS

ModelM625L4-C2

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Color: Red

Nominal Wavelength(a): 625 nm

Bandwidth (FWHM): 17 nm

Emitter Size: 1 mm x 1 mm

Maximum Current (CW): 1000 mA

Forward Voltage : 2.5 V

Electrical Power: 2500 mW

Typical Lifetime: >100 000 h

Operating Temperature (Non-Condensing): 0 to 40 °C

Storage Temperature: -40 to 70 °C

Risk Group(b) RG2 – Moderate Risk Group

***a. Value is approximate.

b. According to the Standard IEC 62471:2006, Photobiological Safety of Lamps and Lamp Systems

Total Beam Power(a,b): 490 mW

Beam Diameter(a): 37 mm

Compatible Microscopes: Leica DMI

***a. Values are approximate.

b. Measured at Maximum Current

Datasheet
