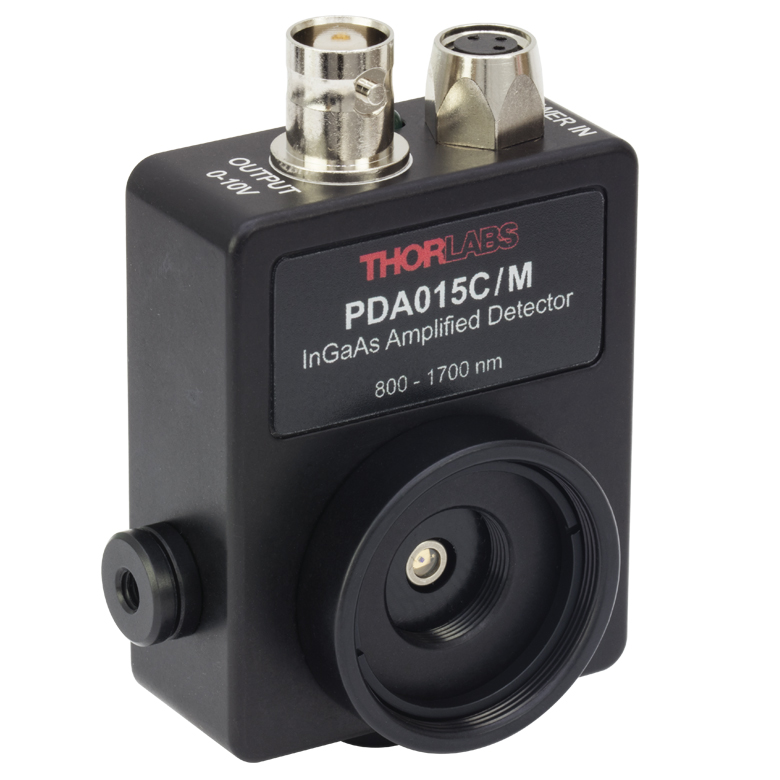

Wavelength Range: 800 - 1700 nm
Bandwidth Range: DC - 380 MHz
Rise Time: 1.0 ns
Gain Hi-Z Load: 50 kV/A
Gain 50 Ω Load: 25 kV/A
NEP: 20 pW/Hz^1/2
Active Area(c): 0.018 mm^2 (Ø150 µm)
Operating Temperature Range: 10 to 40°C
Power Supply Included: Yes
(c) View an image of the detector element in manual.
(d) The detector active area surface is flush with the front of the housing.
(e) The time required for the signal to rise from 10% to 90% of the maximum value.
(f) Femtosecond Pulsed Input
(g) CW Input
