Wavelength Range (Typ.): 1250 - 1350 nm
Output Power(b): 10 - 40 mW
Power Stability: ±0.02 dB
Power Repeatability: ±0.05 dB
Wavelength Accuracy: ±50 pm
Wavelength Stability: ±30 pm
Wavelength Repeatability: ±20 pm
Tuning Resolution: 10 pm
ASE Ratio(c): >60 dB
RIN Noise: -145 dB/Hz
Linewidth: <100 kHz
Tuning Time (Manual Mode)(d):100 ms
Transition Time (Step Mode)(e):300 ms
Dwell Time (Step Mode)(f): 100 ms - 60 s
Sweep Speed Range(g): 50 - 400 nm/s
Output Connector: FC/APC (PM)
Output Fiberh: Single-Mode PM
Polarization Extinction Ratio: >15 dB
Operating Conditions: 10 - 35 °C, 5 - 85% Relative Humidity
Housing Sizei: 17.0" x 15.9" x 3.4" (432 mm x 404 mm x 86 mm)
Supply Voltage: 100 - 250 VAC, 50/60 Hz
Trigger Out Levels (Digital): 0 - 4.1 V
Clock Out Levels (Digital): 0 - 3.3 V
(a) All specifications are typical at 25 °C after 1 hour warm-up time.

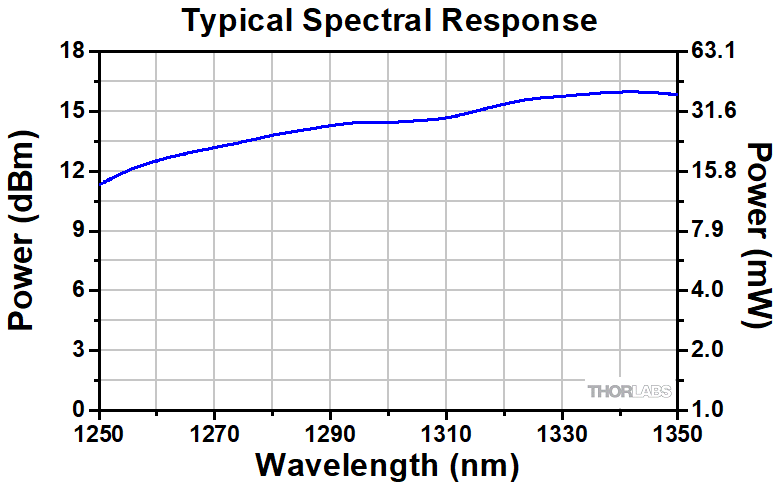

(b) This depends on the wavelength; see the Typical Spectral Response graph to the right.
(c) 0.1 nm Bandwidth, 1 nm from Center
(d) Between Any Two Wavelengths
(e) In Stepped Mode
(f) Does Not Include Transition Time
(g) Continuous Sweep Mode
(h) The slow-axis of the fiber is aligned to the connector key.
(i) 2RU Rack Mount Chassis
