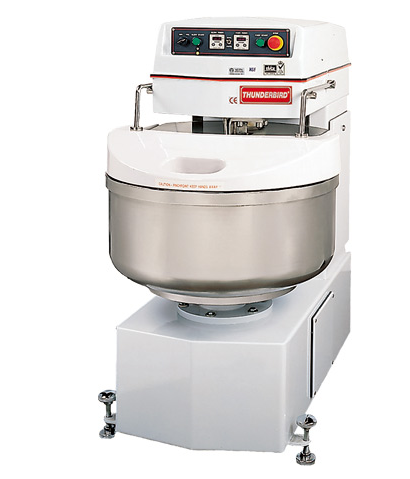

Thunderbird ASP-120 (275 lb capacity) Spiral Mixer (195 qts)

Features:

Two speed motor with timer and separate bowl drive motor.

Bowl jog control makes for easy unloading.

Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.

Specifications

Capacity:

Flour capacity (kg)/(lbs)78/172

Dough capacity (kg)/(lbs)125/275

Bowl capacity (qts)195

Dia. of bowl (mm)800mm/32in

Height of bowl (mm)410mm/16.15in

Motor:

Horsepower8Hp / 1HP

1st speed (kw)2.6

2nd speed (kw)4.8

Bowl(kw)0.6

Dimensions:

Width (mm)960mm/32in

Length (mm)1620mm/52in

Height(mm)1450mm/56in

Machine Weight :1200lbs
