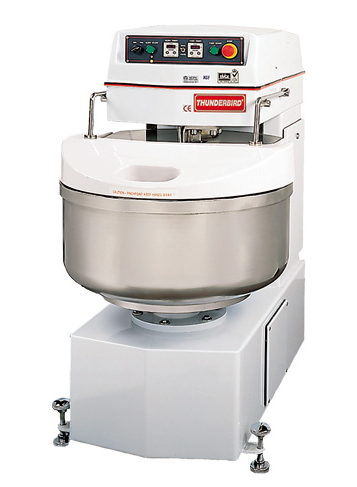

Thunderbird ASP-60 (132 lb capacity) Spiral Mixer (110 qts)

Features:

Two speed motor with timer and separate bowl drive motor.

Bowl jog control makes for easy unloading.

Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.

Specifications

Capacity:

Flour capacity (kg)/(lbs)40/88

Dough capacity (kg)/(lbs)60/132

Bowl capacity (qts)110

Dia. of bowl (mm)600mm/24in

Height of bowl (mm)360mm/14.17in

Motor:

Horsepower7Hp / 1HP

1st speed (kw)2.0

2nd speed (kw)4.0

Bowl(kw)0.6

Dimensions:

Width (mm)655mm/26in

Length (mm)1120/44in

Height(mm)1318/52in

Machine Weight (kg/lb):380/838

Datasheet
