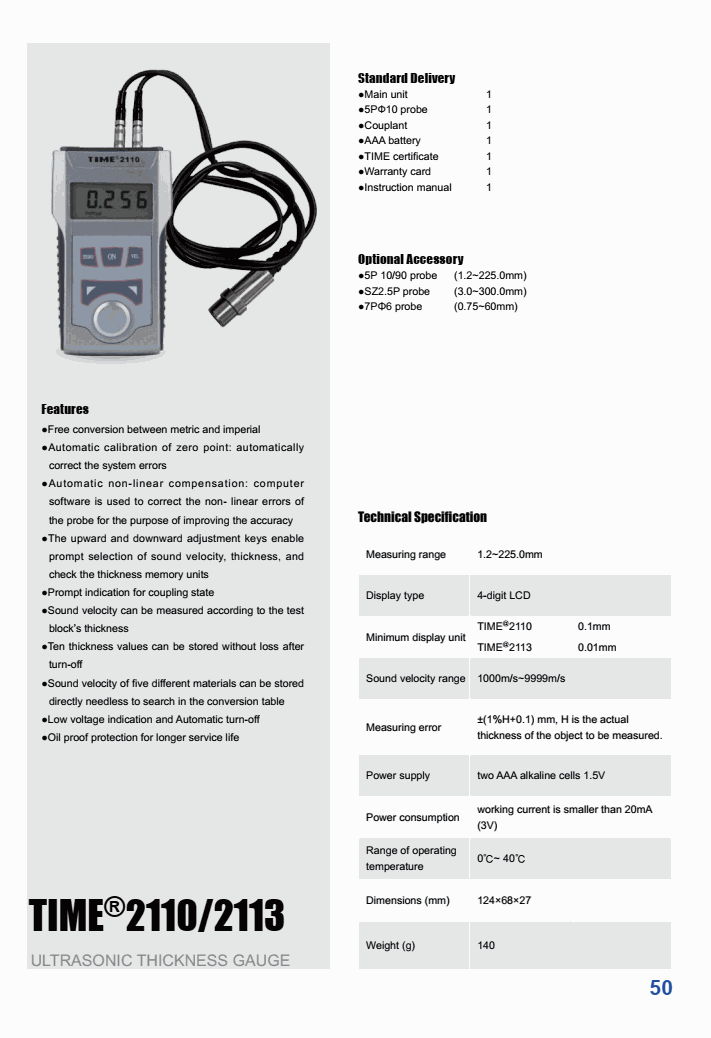

TIME 2110 Ultrasonic Thickness Gauge (1.2~225.0mm)

Specifications:

Measuring range: 1.2~225.0mm

Display type: 4-digit LCD

Minimum display unit: 0.1mm

Sound velocity range: 1000m/s~9999m/s

Measuring error: ±(1%H+0.1) mm, H is the actual thickness of the object to be measured.

Power supply: two AAA alkaline cells 1.5V

Power consumption: Working current is smaller than 20mA (3V)

Range of operating temperature: 0℃~ 40℃

Dimensions (mm): 124×68×27

Weight (g): 140

Standard Delivery　

Main unit

5PФ10 probe

Couplant

AAA battery

TIME certificate

Warranty card

Optional Accessory

5P 10/90 probe (1.2~225.0mm)

SZ2.5P probe (3.0~300.0mm)

7PΦ6 probe (0.75~60mm)
