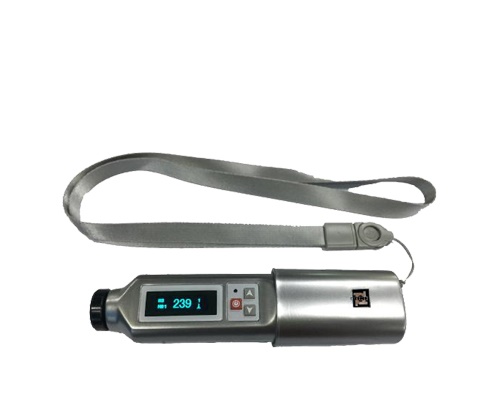

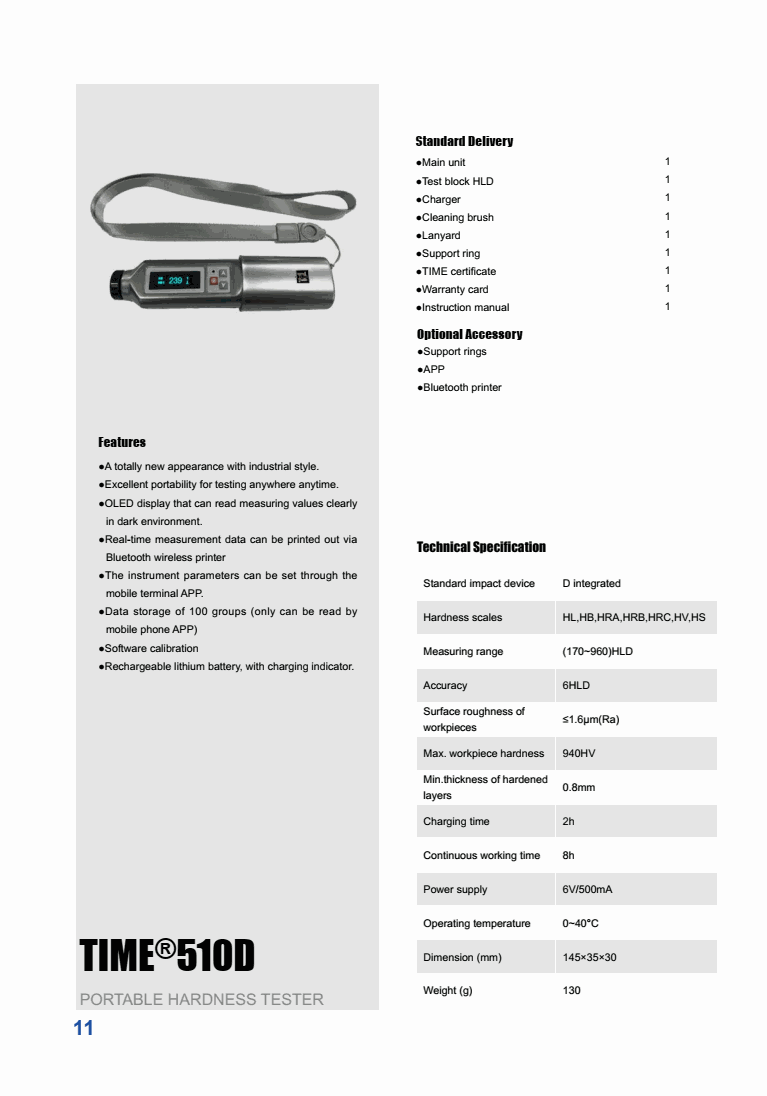

TIME 510D Portable Hardness Tester (Leeb)

Specifications:

Standard Impact device: D integrated

Hardness scales: HL, HB, HRA, HRB, HRC, HV, HS

Measuring range: (170~960) HLD

Accuracy: 6 HLD

Surface roughness of workpieces: ≤1.6μm(Ra)

Max. workpiece hardness: 940HV

Min. thickness of hardened layers: 0.8mm

Charging time: 2h

Continuous working time: 8h

Power supply: 6V/500mA

Operating temperature: 0~40°C

Dimension (mm): 145×35×30

Weight (g): 130

Standard Delivery

Main unit

Test block HLD

Charger

Cleaning brush

TIME certificate

Lanyard

Support Ring

Warranty card

Optional Accessories

Support rings

APP　

Bluetooth Printer
