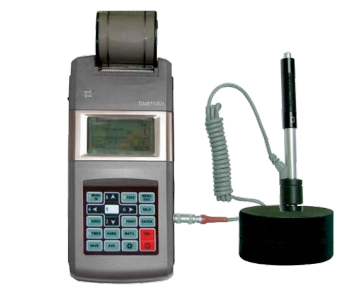

TIME 5301 Portable Hardness Tester (Leeb; type D)

Specifications:

Measuring range: (170-960) HLD (17.9-69.5) HRC

Hardness scale: HL, HB, HRA, HRB, HRC, HV, HS

Measuring direction: 360°

Tolerance: ±6HLD (when HLD=760±30)

Repeatability: 6HLD (when HLD=760±30)

Diameter for printer paper: 40 mm

Width for printer paper: 44.5±0.5 mm

Power: 12V/600mA

Charging time: 2-3.5 hour

Humidity: ≤90%

Operating temperature: 0°C-40°C

Dimensions (mm): 234x88x46

Weight (g): 600

Standard Delivery

Main unit

Impact device type D

Cleaning brush

Small support ring

Test block HLD

Charger

TIME certificate

Warranty card

Instruction manual

Optional Accessories

Printing paper

Special impact devices

Support rings

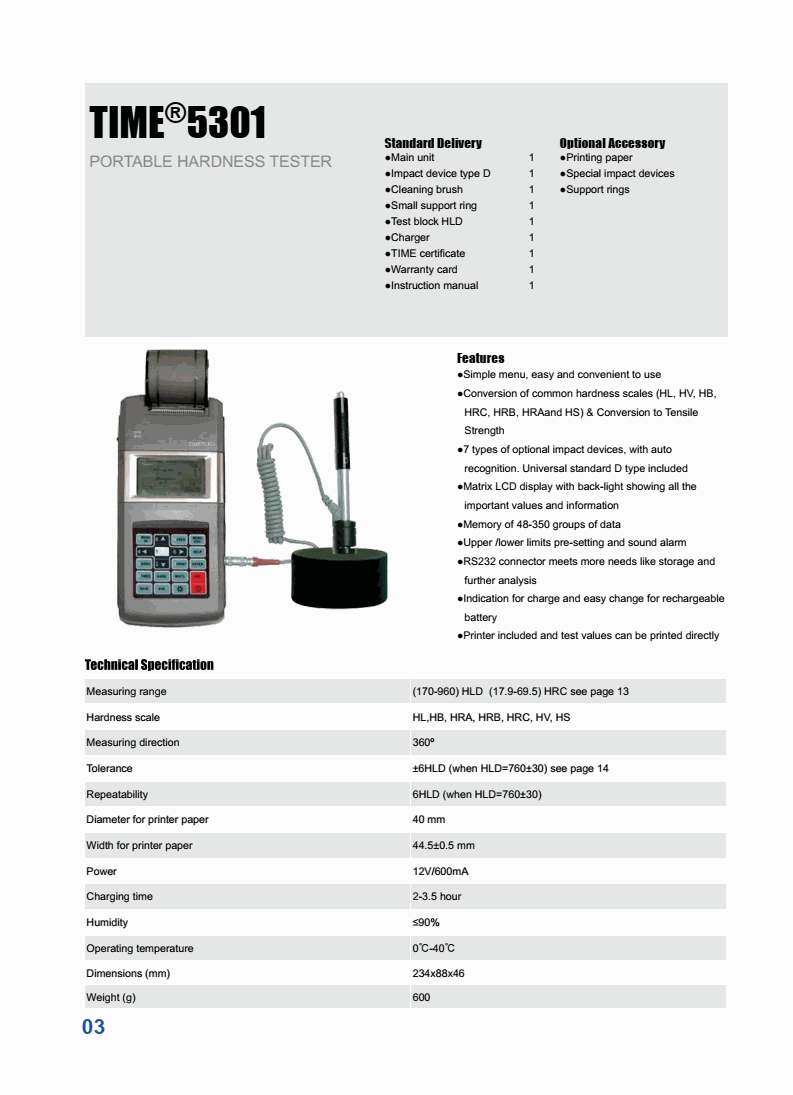

Datasheet

`
