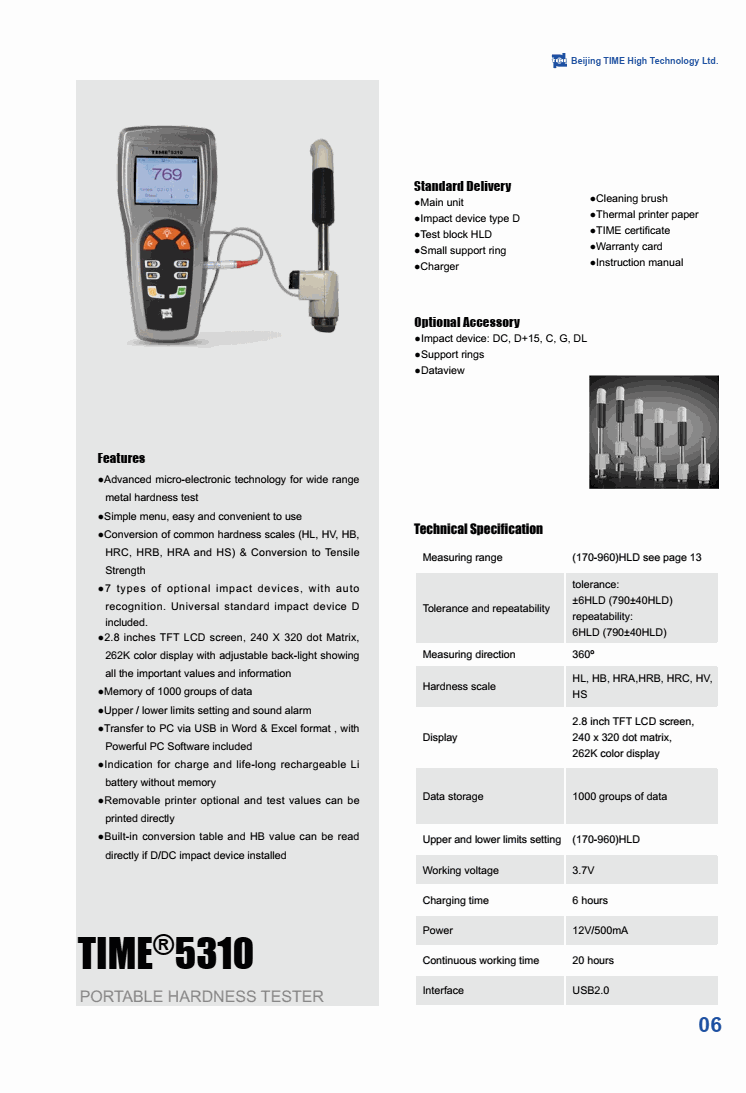

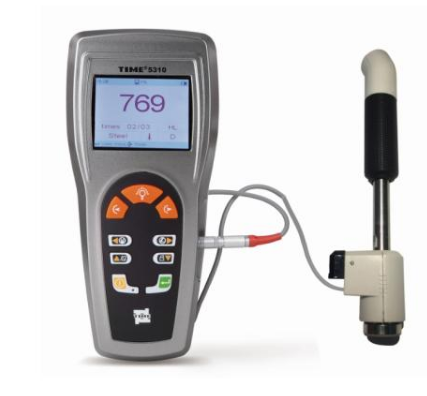

TIME 5310 Portable Hardness Tester (Leeb; Type D; 170-960 HLD)

Specifications:

Measuring range: (170-960) HLD

Tolerance and Repeatability:

Tolerance: ±6HLD (790±40HLD)

Repeatability: 6HLD (790±40HLD)

Measuring direction: 360°

Hardness scale: HL, HB, HRA, HRB, HRC, HV, HS

Display: 2.8 inch TFT LCD screen, 240 x 320 dot matrix, 262K color Display

Data storage: 1000 groups of data

Upper and lower limits setting: (170-960) HLD

Working voltage: 3.7V

Charging time: 6 hours

Power: 12V/500mA

Continuous working time: 20 hours

Interface: USB2.0

Standard Delivery

Main unit

Impact device type D

Test block HLD

Small support ring

Charger

Cleaning brush

Thermal printer paper

TIME certificate

Warranty card

Optional Accessories

Impact device: DC, D+15, C, G, DL

Support rings

Dataview

Datasheet
