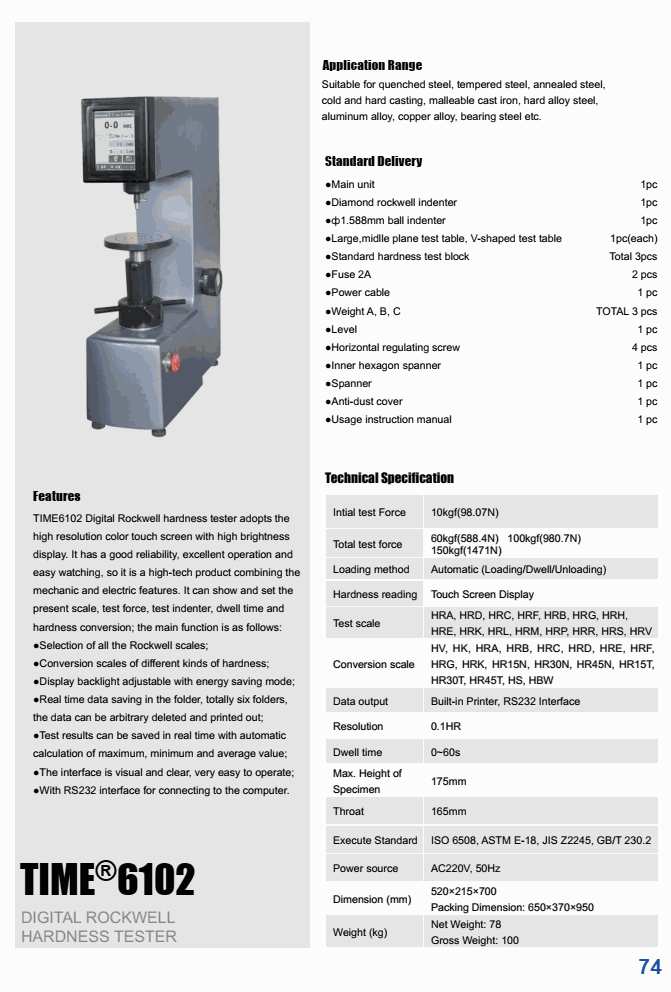

TIME 6102 Digital Rockwell Hardness Tester (10kgf (98,07n))

Initial test Force: 10kgf(98.07n)

Total test force: 60kgf(588.4n); 100kgf(980.7n); 150kgf(1471n)

Loading method: Automatic (Loading/Dwell/Unloading)

Hardness reading: Touch Screen Display

Test scale:

HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV

Conversion scale:

HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HS, HBW

Data output: Built-in Printer, RS232 Interface

Resolution: 0.1HR

Dwell time: 0~60s

Max. height of specimen: 175mm

Throat: 165mm

Execute standard: ISO 6508, ASTM E-18, jIS Z2245, GB/T 230.2

Power source: AC220V, 50Hz

Dimension (mm):

520×215×700

Packing Dimension: 650×370×950

Weight (kg)

net Weight: 78

Gross Weight: 100

Standard Delivery

1 set Instrument Main Body

ф1.588mmBall Indenter

Large Plane Test Table

Hardness Block 60~70 HRC

Hardness Block 80~100 HRB

Power Cable

Level

Inner Hexagon Spanner

Diamond Rockwell Indenter

Middle Plane Test Table

V-shaped Test Table

Hardness Block 20~30 HRC

Weight A

Weight B

Weight C

2x Fuse 2A

4 x Horizontal Regulating Screw

Spanner

Anti-dust cover

Usage Instruction Manual
