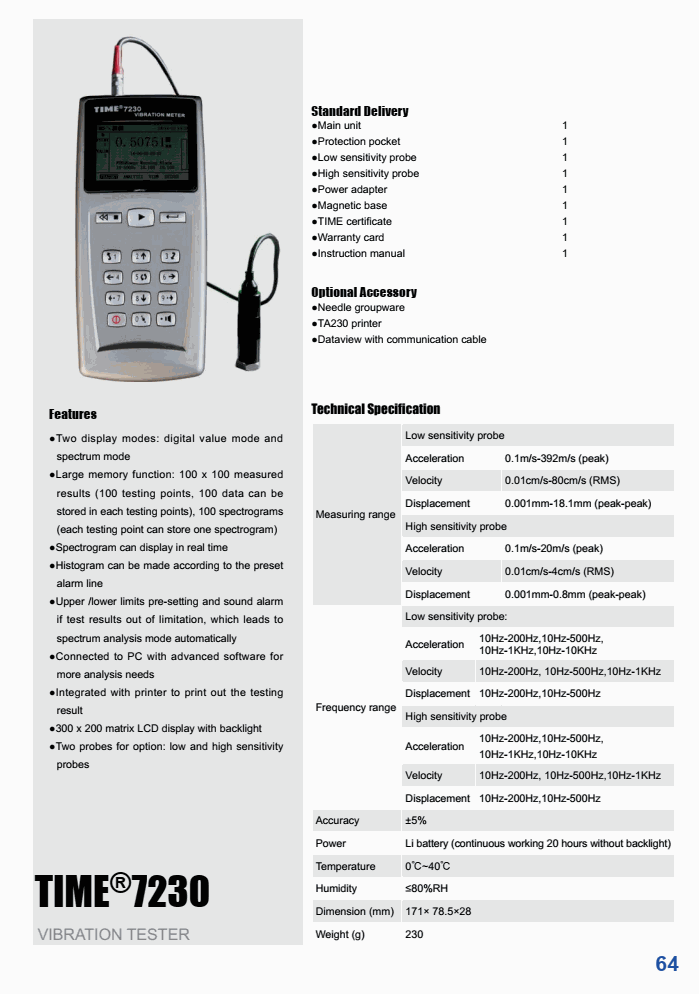

Measuring range
Low sensitivity probe
Acceleration: 0.1m/s-392m/s (peak)
Velocity: 0.01cm/s-80cm/s (RMS)
Displacement: 0.001mm-18.1mm (peak-peak)
High sensitivity probe
Acceleration: 0.1m/s-20m/s (peak)
Velocity: 0.01cm/s-4cm/s (RMS)
Displacement: 0.001mm-0.8mm (peak-peak)
Frequency range
Low sensitivity probe:
Acceleration: 10Hz-200Hz,10Hz-500Hz, 10Hz-1KHz,10Hz-10KHz
Velocity: 10Hz-200Hz, 10Hz-500Hz,10Hz-1KHz
Displacement: 10Hz-200Hz,10Hz-500Hz
High sensitivity probe
Acceleration:
10Hz-200Hz,10Hz-500Hz, 10Hz-1KHz,10Hz-10KHz
Velocity: 10Hz-200Hz, 10Hz-500Hz,10Hz-1KHz
Displacement: 10Hz-200Hz,10Hz-500Hz
Accuracy: ±5%
Power: Li battery (continuous working 20 hours without backlight)
Temperature: 0℃~40℃
Humidity: ≤80%RH
Dimension (mm): 171× 78.5×28
Weight (g): 230
Standard Delivery
Main unit
Protection pocket
Low sensitivity probe
High sensitivity probe
Power: adapter
Magnetic base
TIME certificate
Warranty card
Instruction manual
Optional Accessory
Needle groupware
TA230 printer
Dataview with communication cable
