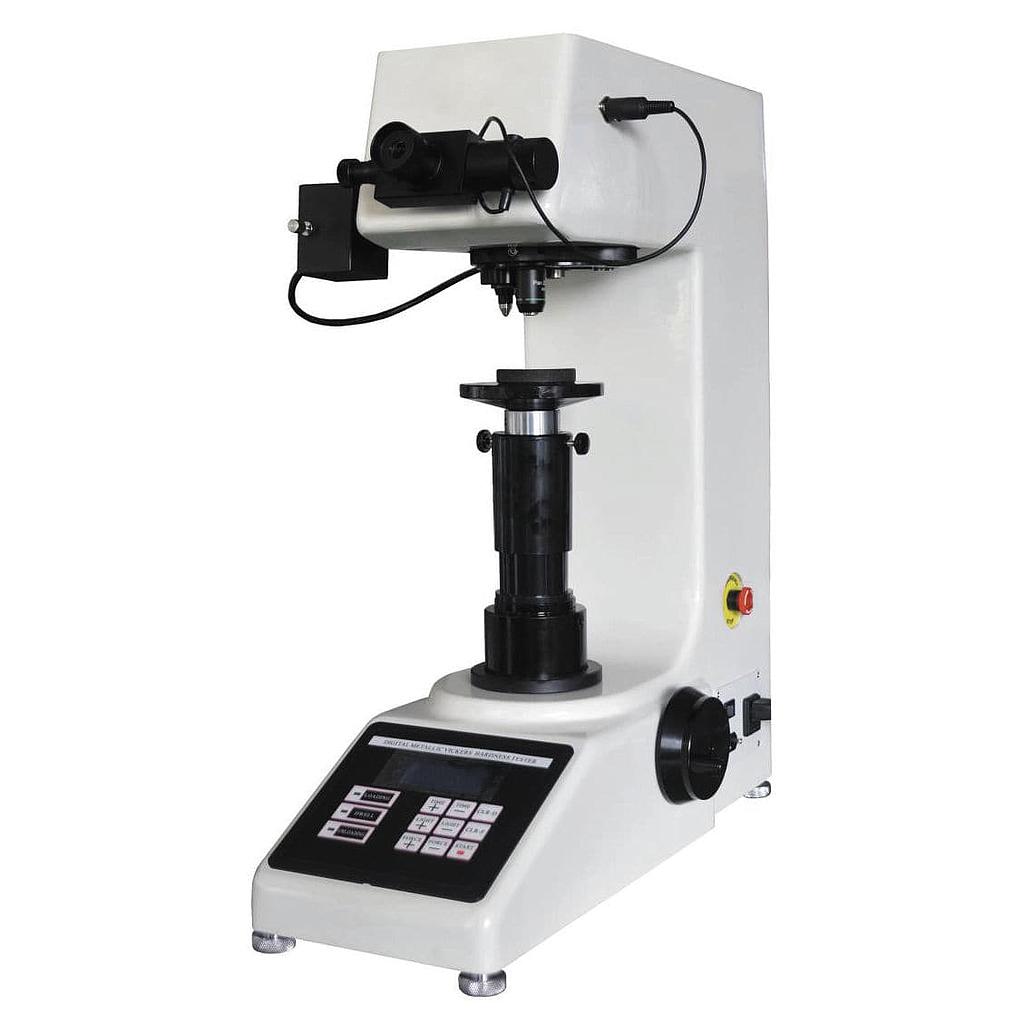

Technical Specification
Test force:
4.90n(0.5kgf), 9.80n(1kgf), 19.6n(2kgf), 24.5n(2.5kgf), 29.4n(3kgf), 49n(5kgf), 98n(10kgf), 196n(20kgf), 294n(30kgf)
Test Range: 1HV~2967HV
Loading Method: Automatic (Loading/Dwell/Unloading)
Shifting between Objective and Indenter: Automatic
Total Magnification: 100×, 200×
Resolution: 1μm
Dwell Time: 0~60s
Light Source: Halogen Lamp
Max. Height of Specimen: 170mm
Throat: 130mm
Power Supply: AC220V, 50Hz
Execute Standard:
ISO 6507, ASTM E92, jIS Z2244, GB/T 4340.2
Dimension:
530×280×630mm
Packing Dimension: 620×450×740mm
Weight (kg)
net Weight: 35
Gross Weight: 47
Standard Delivery
Instrument Main Body
Diamond Vickers Indenter
Big Plane Test Table
Power Cable
4 x Horizontal Regulating Screw
2 x Fuse1A
Inner Hexagon Spanner 2.5mm
Hardness Block 700~800 HV30
Usage Instruction Manual
10× Reading Microscope
10×，20×Objective
V-shaped Test Table
Level
Halogen Lamp12V, 15~20W
Screw Driver
Hardness Block 400~500 HV5
Anti-dust Cover
