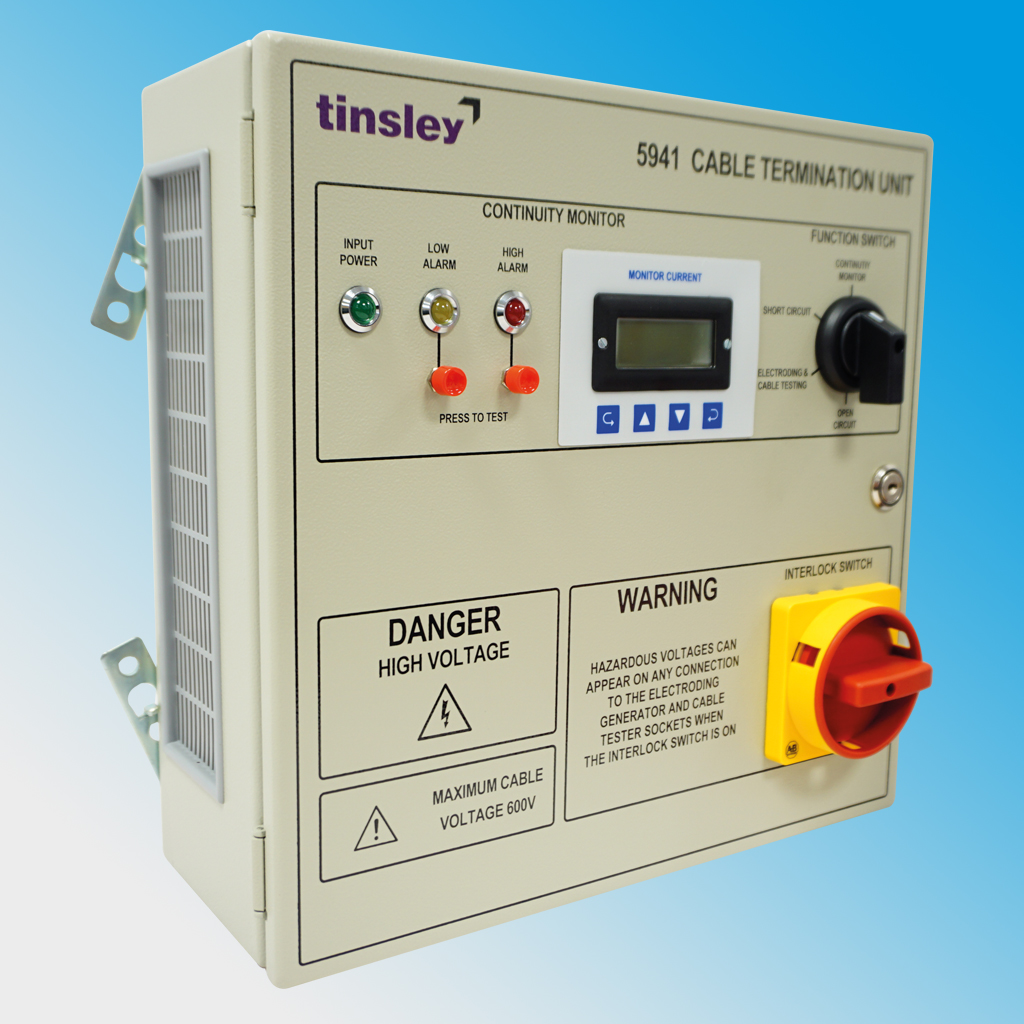

Tinsley 5941 Cable Termination Unit

Input Supply Voltage: 36V to 60V DC

Maximum Supply Current: 1.5A

Open Circuit Output Voltage (Input 48V): -100V

Output Voltage Stability (max. load & supply variation): ± 1V

Short Circuit Current - Normal Drive: 213 ± 13 mA

Short Circuit Current - Hard Drive: 297 ± 35 mA

Alarm Level Range: -333 mA to + 333 mA

Alarm Level Stability (with load, supply and temperature variation): ± 2.5%

Alarm Contacts Rating: 100V 0.5A DC

Maximum Allowable Cable Power: 600V Peak Voltage; 4A Current

Operating Temperature Range: 0ºC to 40ºC

Surge Arrestor Rating

Max. Surge Current: 20kA

DC Spark Over Voltage: 700V

Impulse Spark Over Voltage: 1400V
