Output force: 11 ton
Stroke: 20 mm
Max thickness: 1.6 mm stainless steel / 3.2 mm mild steel
Punch range: 16–60 mm
Punch dies: Ø22, Ø27, Ø34, Ø43, Ø49, Ø60 mm
Machine weight: 8.6 kg
Packing size: 490 × 260 × 130 mm
Characteristics:
Punching capacity:
Stainless steel plate up to 1.6 mm thickness
Mild steel plate up to 3.2 mm thickness
Punching range: Ø16-60mm
●Made of aluminum, the tool features lightweight and high portability.

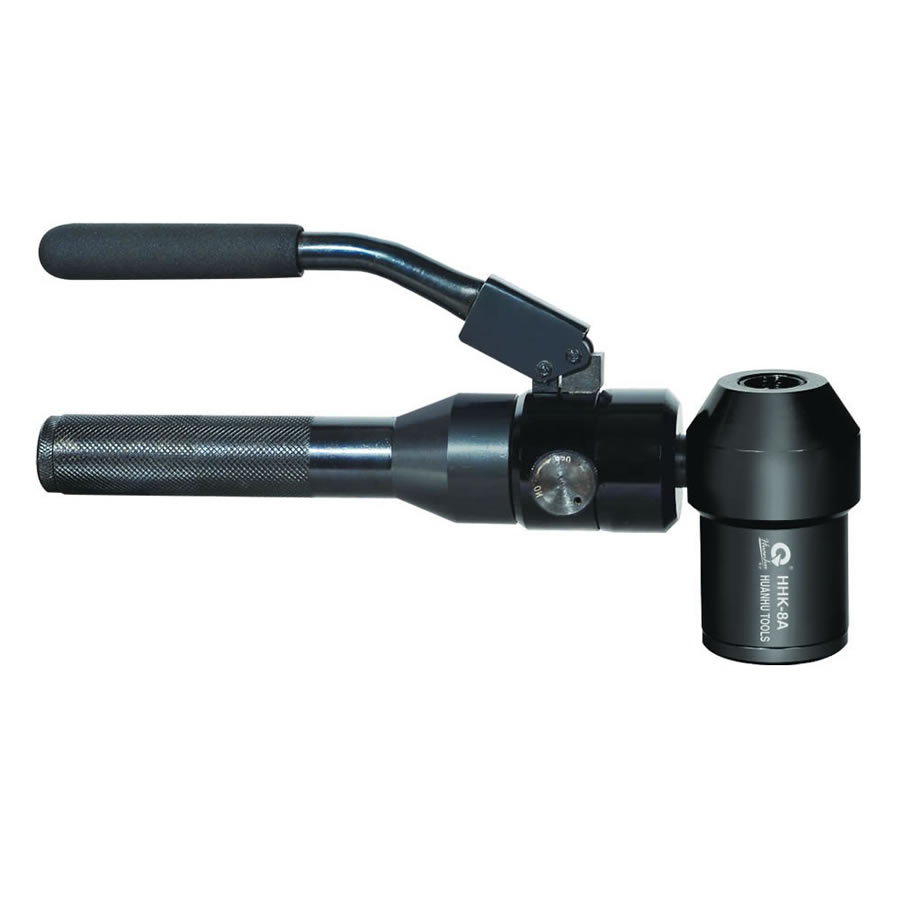

●The head of HHK-8A is right-angled and rotating 360°, which allows greater versatility in tight spaces.
