Working pressure: 700bar
Cylinder Capacity @700 bar (Ton): 100
Cylinder Capacity @700 bar (KN): 1077
Stroke (mm): 100
Effective area (cm²): 1539
Oil capacity(cm³): 1584

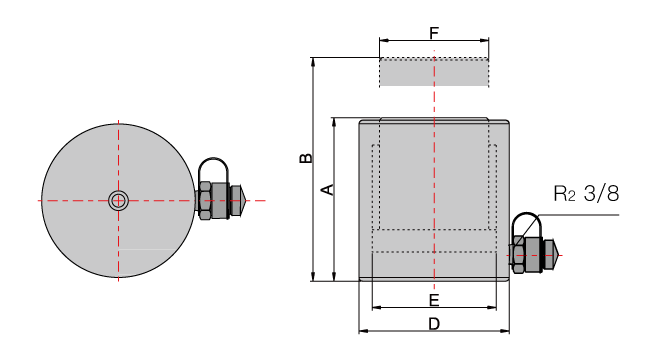

Closed height A (mm): 232
Extended Height B (mm): 332
Outside Dia. D (mm): 178
Inside Dia. E (mm): 140
Piston Rod Dia. F (mm): 100
G.W.(Kg): 30.6
Standard Saddle Dia. J (mm): 83
Saddle Protr. From Plgr. K (mm): 2
Handle: Eyebolts
Recommended pump: HHB-700A

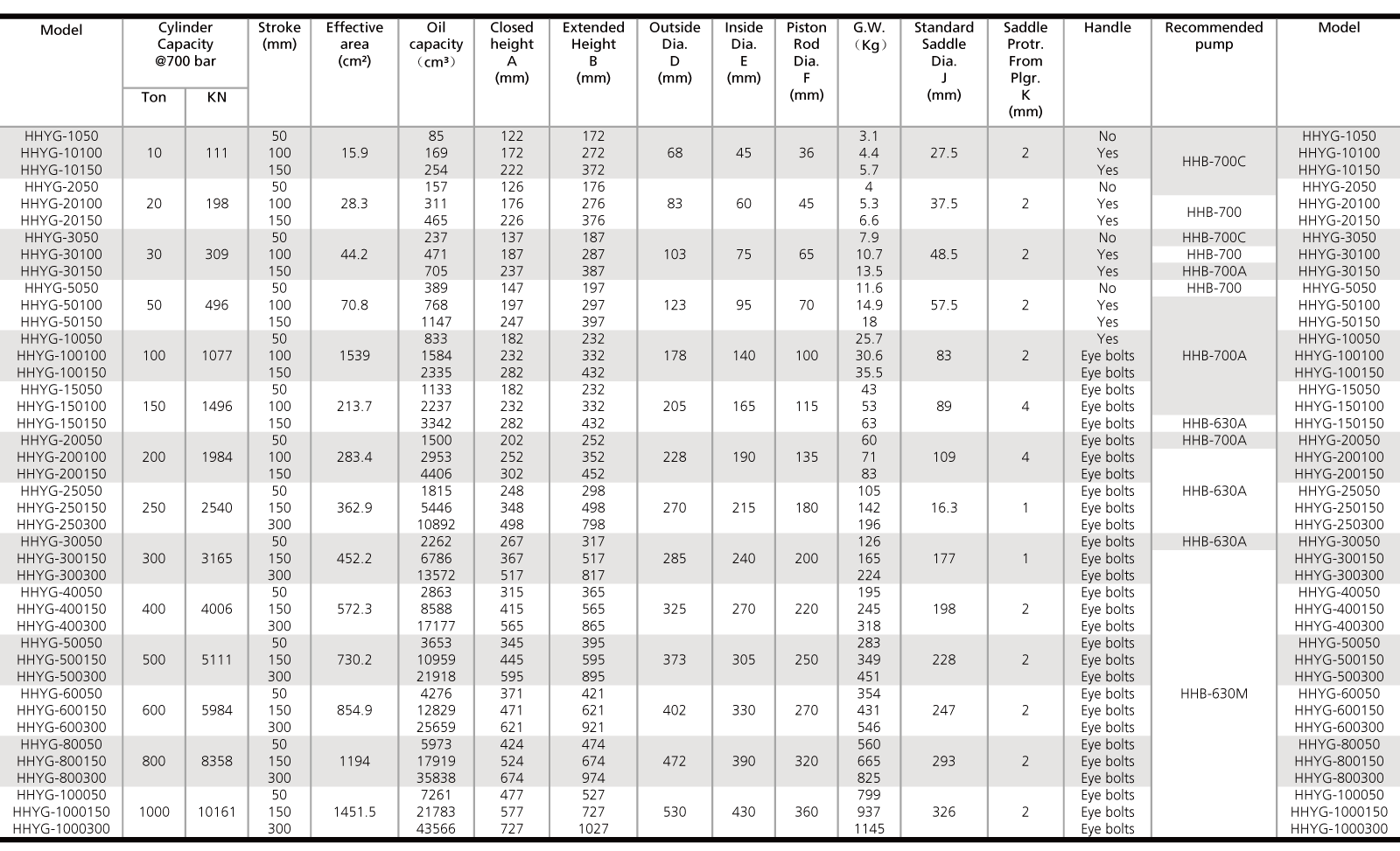

Parameters
