Cylinder Capacity @700bar: 100T; 100mm
+ Ton: 100
+ Enter trace (kN): 965
+ Return trace (KN): 642
Stroke (mm): 100
Effective Area Extend (cm²): 137.8
Effective Area Return (cm²): 91.7
Oil Capacity Extend (cm³): 1379
Oil Capacity Return (cm³): 917
Closed Height A (mm): 257
Extended Height B (mm): 357
Outside Dia D (mm): 212
Center Hole G (mm): 80
Inside Dia H (mm): 166
Piston Rod Dia F (mm): 126
Weight (kg): 56.6
Handle: Removeable carrying handles
Recommened pump: HHB-700S

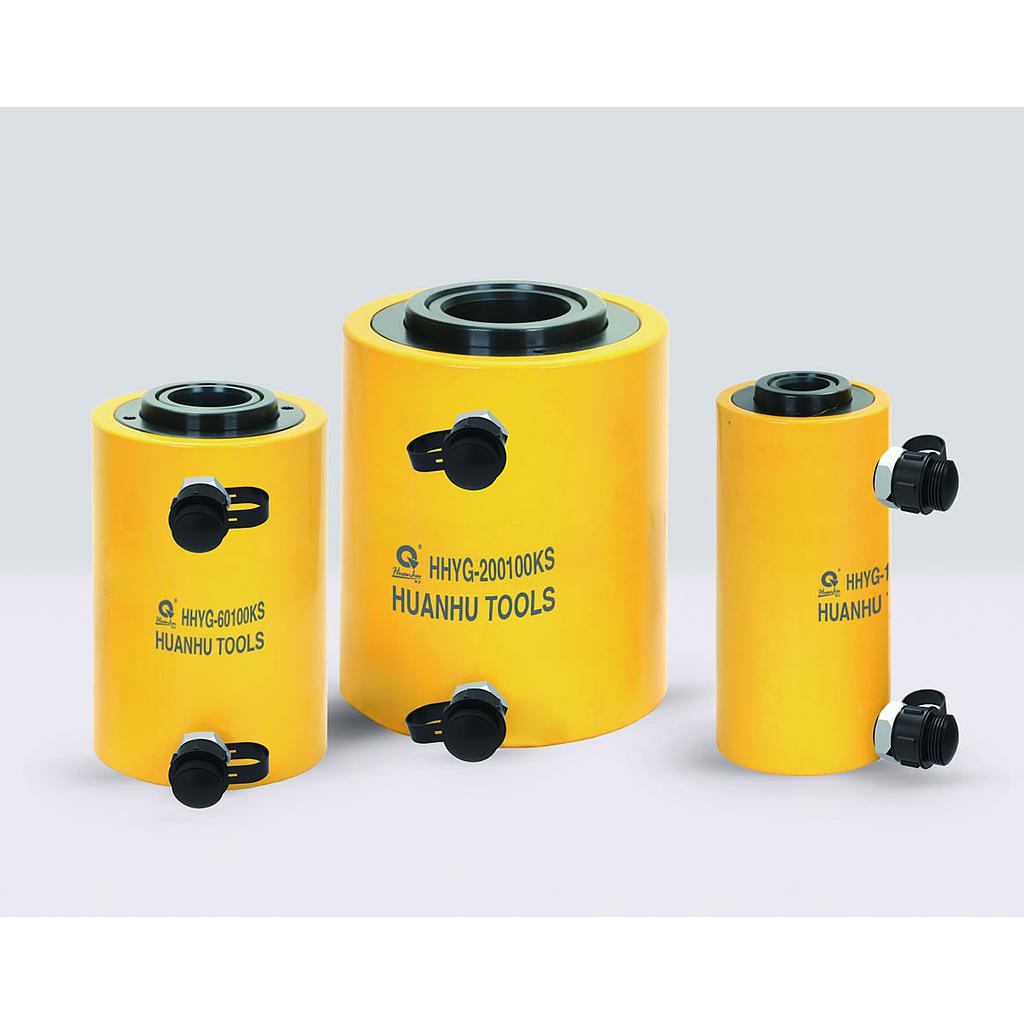

Double-acting, Hollow Plunger Cylinders
Working pressure: 700bar
For use in Testing, Maintenance and Tensioning Applications
Hollow plunger design allows for both push and pull forces.
Double acting, hydraulic return.
High strength alloy steel for durability.
Baked enamel finish for increased corrosion resistance.
Each cylinder has an HH-II R2 3/8 male half coupler and dust cap.
