Cylinder Capacity @700bar
+ Ton: 10
+ kN: 111
Stroke (mm): 100
Effective area (cm²): 15.9
Oil capacity (cm³): 169
Closed height A (mm): 192
Extended height B (mm): 292
Outside Dia D (mm): 60
Inside Dia E (mm): 45
Piston Rod Dia F (mm): 38
G.W. (kg): 1.7
Standard Saddle Dia J (mm): 30
Saddle Protrusion K (mm): 2
Handle: No
Recommended pump: HHB-700C

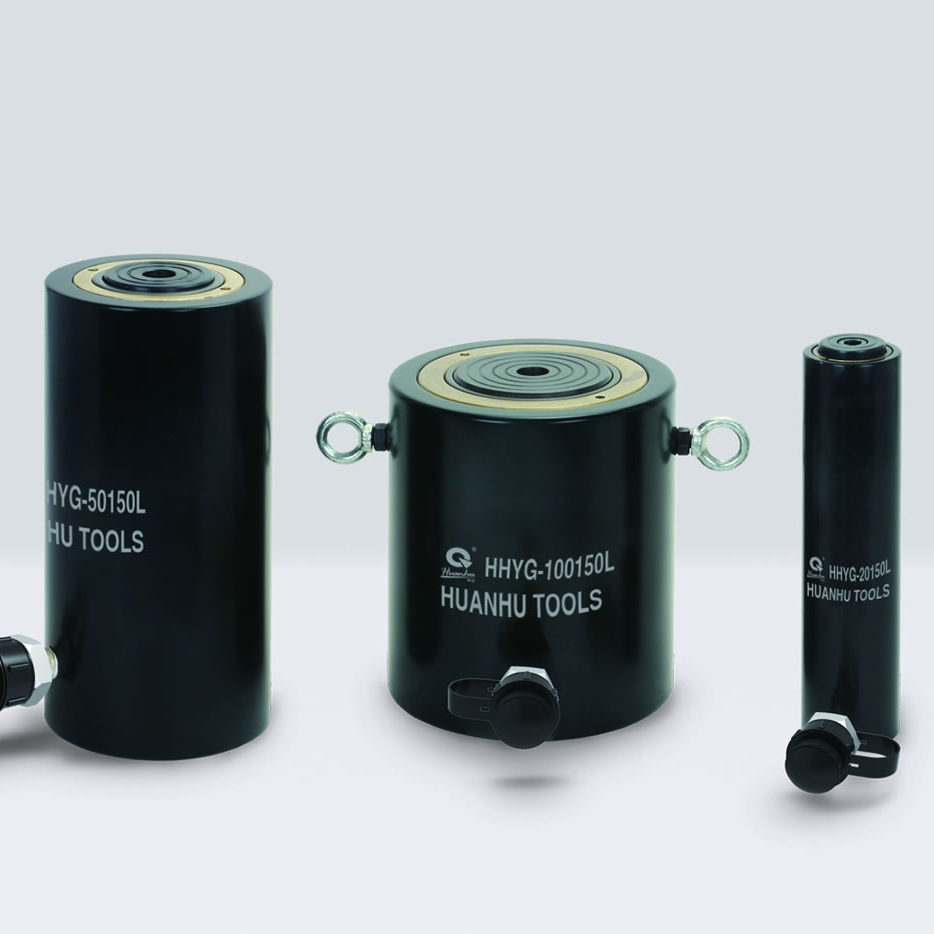

Single-acting Aluminum Cylinders
Working pressure: 700bar
Half the weight of steel cylinders of comparable capacity
Aluminum body resists sparking in explostive environment.
Hard-coated aluminum piston rod and cylinder bore resist wear and corrosion.
Lightweight for maxium portability.
Hard-coat finish on all surfaces resists damage and extends cylinder lift.
Single acting, spring return.
Each cylinder has an HH-II R2 3/8 male half coupler and dust cap.
Each cylinder has a flat grooved saddle. Tilt saddle is available on request.
