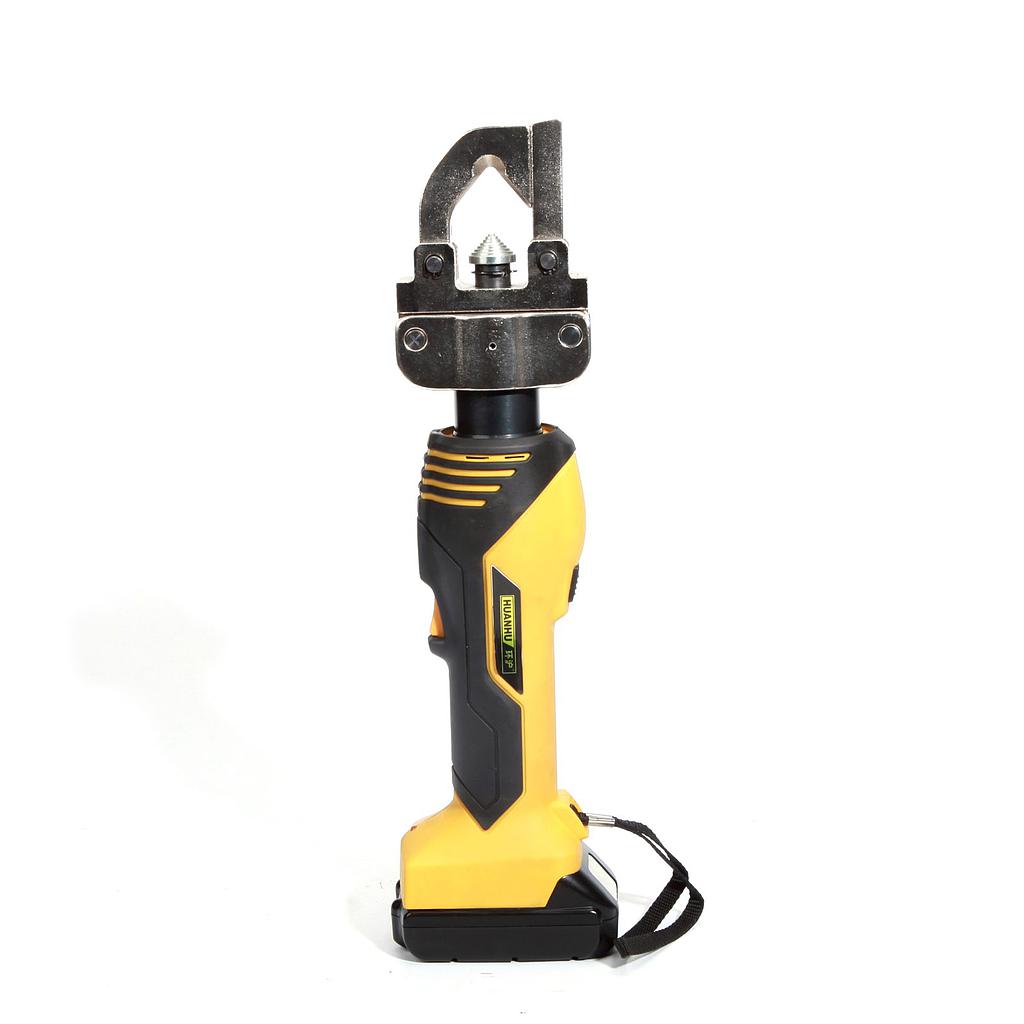

TLP HHZD-4H Battery Powered Universal Tool (7T; 38mm)

Hydraulic Ram Output: 7 Ton

Ram Stroke: 38 mm

Battery Capacity: 40 cutting cycles, 160 crimping cycles, 50 punching cycles

Cutting Range: Ø50 mm (Cu/Al and armoured cable)

Crimping Range: 16 – 300 mm²

Punching Range: Ø22 – Ø60 mm

Battery: 18 V / 2.0 Ah Li-ion

Charging Time: 0.5 hours

Accessories:

Crimping Dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm²

Punching Dies: 22, 27, 34, 43, 49, 60 mm

Qty of Battery: 2 pcs

Charger: 1 pc

Blade: 1 set

Adapter for Crimping: 1 pc

Adapter for Punching: 1 pc

Draw Stud M20 × 1.5: 1 pc

Draw Stud M10 × 1: 1 pc

Spacer: 1 pc

Seals: 1 set

Weight: 21.4 kg

Packing Size: 440 × 320 × 260 mm

Characteristics:

One head for crimping, cutting and punching – one tool for all

Lightweight and well-balanced.

Interchangeable crimping dies, cutting blades and punching adapter.

Only seconds of time is needed to switch crimping, cutting and punching functions.

Characteristics:

●One universal head to complete crimping,cutting and punching jobs.

●Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.

●10000+ cycle service life.

●Ram retracts to original position automatically when operation is complete.

●Manual retraction in case of need.

●Audible buzzer and red LED light in case of error.

●Quick motor stop for higher user safety.

●Powerful 18V Li-ion battery with low battery warning.

●Ergonomic 2-component grip area and balanced center of gravity.

●Sturdy plastic storage box.
