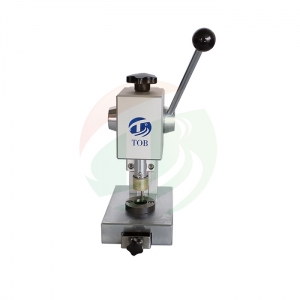

Operating: Manual
Punching size: Standard configuration : φ14mm punching die, φ8-24mm can be chosen
Application Notes
For make CR2016, CR2025 or/and CR2032 coin cell batteries,
we will need at least three cutting dies:
A 15mm
B 16mm
C 19 mm (for separator to fully separate the electrodes)
For CR2450 coin cell:
20mm cutting die can be used for cutting electrode discs and the
23mm cutting die for separator disc.
Punching stroke: 25mm
Punching thickness: 0.005-0.5mm electrode and separator
Advantages
Simple operation
Light weight
Can both cut electrode and separator
Dimension: 110 * 150 * 235mm
Weight: About 6kg
