Working Voltage: 110V / 220V AC single phase selectable
Power: 200W Total

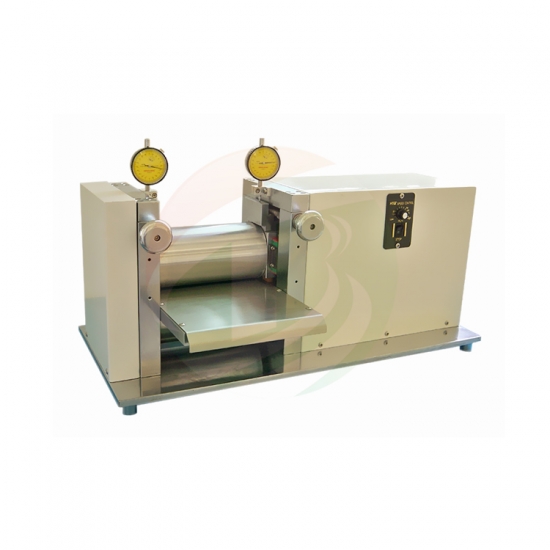

Structure
Heavy duty steel frame, gears and handle
Φ100mm Dia. x 200mm width Rollers made from hardened tool steel (HRC > 62) with Cr electroplated coating
Dual micrometer for accurate thickness adjustment in the range 0 - 2 mm Maximum
Roller
Dimensions: 100mm(Dia.) x 200mm(W)
Material: Made from hardened tool steel (HRC > 62) with Cr electroplated coating. With finish > 0.8
Rolling press accuracy: ≤ ±0.005
Roller surface hardening depth: 5mm
Max pressure: 5T
Rolling press thickness: 0-2mm adjusted with Dial gauge
Rolling press width: Max 200mm, Customized
Rolling press speed: 0-2m/min adjustable
Product Dimensions: 700 mm(L) x 320mm(W) x 310mm(H) (28" x 12.5" x 12.2")
Weight: 76kg
Datasheet
Application Notes
This roller is specially designed for battery R&D in terms of its advantages as affordable, compact and precise.
1, Must use acetone to clean and dry rollers' surfaces after each use to avoid rusting
2, Coated Rust-proof oil if machine were to be unused for a long period of time
3, The minimum thickness of the rolled sheet should depend on the physical property of the materials.
Here are some results from our test:
|
Electrode |
Size |
Original thickness |
Finished thickness |
|
LiFePO4 double sides |
50mm Width x 260mm Length |
0.205mm |
0.09mm |
|
LiMn2O4 double sides |
50mm Width x 260mm Length |
0.205mm |
0.09mm |
|
Copper foil + graphite (single side) |
75mm Width x 240mm Length |
0.09mm |
0.04mm |
Sample testing is available upon customer's request
