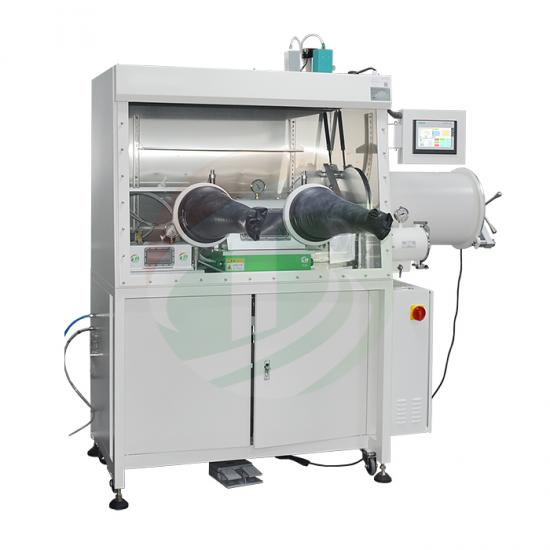

1. Glove box
1.1 Box size: (L*W*H)=1220×750×900mm
1.2 Box material :stainless steel304
1.3 With 3 KF40 backup interface and 1 power interface
1.4 With two layers of shelves
2. Box bracket : Height:900mm
3. Main pipe : Stainless steel material, DN40
4. Cycle valve : Electronically controlled pneumatic vacuum bellows sealed valve, DN40
5. Bigger transitive cabin : φ360*600mm, Automatic valve control air extracting and inflating
6. Smaller transitive cabin : φ150*300mm, Manual valve to control the pumping and inflating
7. Box window : Transparent toughened glass, thickness of 8mm
8. Gloves interface : Stainless steel, diameter : 200mm.
9. Gloves : Butyl rubber material, 7B1532.
10. Vacuum pump : With oil mist filter, RV8
11. circulating fan : Flow90 m3/h,
12. Purifier material:Import from Germany
13. Water analyzer : testing range：0-500ppm, Especially for the lithium battery manufacturing and metal organic users, can be washed and reused.
14. Oxygen analyzer：testing range: 0-1000ppm,The ZrO2 sensor, avoid the fuel battery life short, not exposed in the air of the problem.
