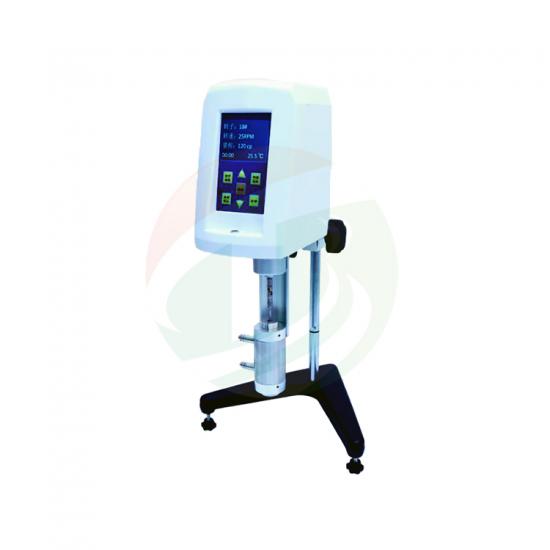

TOB TOB-LV-SSR Digital Display Rotary Viscometer (1- 1,600,000(mPa.s))

Display method: Backlit LCD, digital display

Rotating speed(r/min)

0.3/0.6/1.5/3/6/10/12/15/20/25/30/40/50/60/70/80/90/100

18 types in total

Rotor

18#，25#，31#，34# （Standard）

ULR (Rotor 0) （Optional）

Measuring range: 1- 1,600,000(mPa.s)

Sample volume

ULR（Rotor 0）: 1-1000; Sample volume 21ml

Rotor 18: 30,000 to 10,000; sample volume 7ml

Rotor 25: 4.8-1.6 million; sample volume 9ml

Rotor 31: 300,000 to 100,000; sample volume 10.5ml

Rotor 34: 200,000-200,000; sample volume 11ml

Measurement error: ± 2% (Newton liquid)

Repetitive error: ± 1% (Newton liquid)

Output Interface: There are two RS232 interfaces to connect the printer and computer

Temperature probe interface: Standard

Dimensions (mm): 300 × 300 × 450

Datasheet

Features

1. The horizontal bubble is in front, it is convenient to adjust the level while sitting, it is very convenient.

2. With timing measurement function

3. Coaxial cylinder structure

4. The measurement accuracy of the data is two decimal places

5. Easy to operate and reliable

6. Uses a small number of sample adapters, requiring very little sample

7. The viscometer comes with two RS232 interfaces, which can be directly connected to a micro thermal printer and a computer
