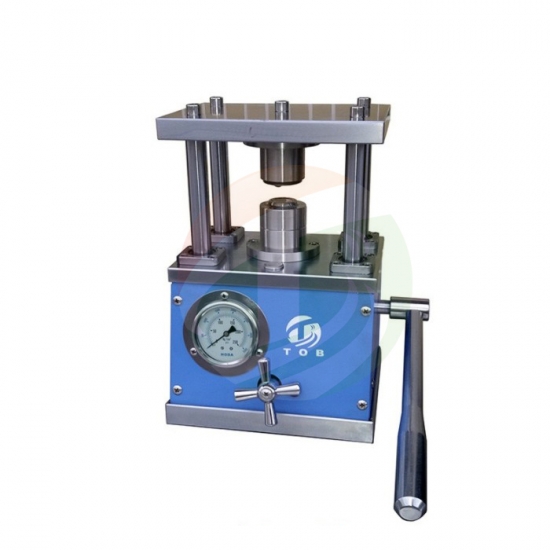

Standard Crimping Die
One set of crimping die for CR2032,CR2025,and CR2016
Optional die available from product option for crimping CR2325,CR2450,AG3,AG5
PTFE Anti-Corrosion Core prevents coin cells from being short circuited
Rocker Pressure: < 6kg
Max Pressure: 200 kg/cm2 (The hydraulic drive pressure up to 8T, the battery sealing no vibration, no leakage)
Working Pressure: 80-100 kg/cm2
Dimension(L*W*H): 232 * 170 * 330mm
Weight: 28kg
Shipping Weight: 35kg
Datasheet
Advantages
The lower die with high precision positioning ring spacing, control batteryseal height
The upper die is provided with a sealing cup inner screw spring mechanism,ensure in case the battery sealing clamp can not be removed,only the top screw clockwise and the button battery out.
By using aluminum alloy and high strength steel, surface after the environmental protection electroplating processing will never rust
