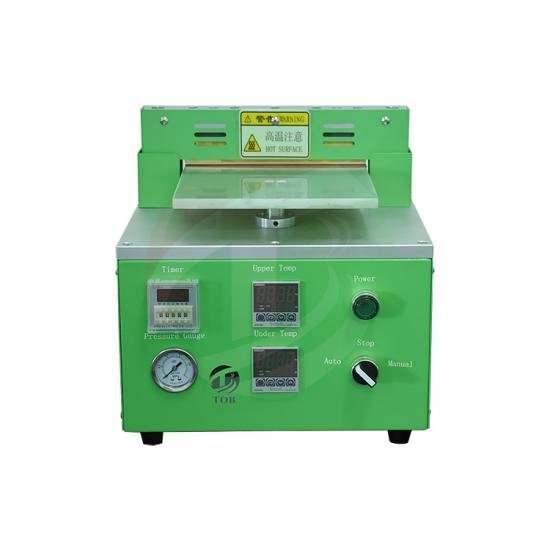

TOB TOB-SFZ-200 Pouch Cell Top-Side Battery Heat Sealing Machine (600W, 250℃)

Name: TOB TOB-SFZ-200 Pouch Cell Top-Side Battery Heat Sealing Machine (600W, 250℃)
Brand: TOB

ModelTOB-SFZ-200

OriginChina

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Voltage supply: 110/220V 50/60Hz Single Phase

Power: 600W

Compressed air: ≥ 6kg/cm2

Suitable battery size: Top sealing ≤200mm, Side sealing ≤200mm

Sealing head length: 200mm, Customized

Sealing thickness: 0.15-0.3mm

Sealing stamp width: 6mm (Can be customized upon request without extra charger)

Sealing pressure: 0.5- 0.7 MPa (0 - 99 psi) adjustable

Sealing temperature: RT-250℃, adjustable with controlling accuracy +/-2 °C

Sealing time: 0-99s adjustable

Sealing blade type

Soft sealing blade

(Copper sealing blade with aluminum and Silicone rubber piece,

good for Al film case sealing and case with tab in between,

suitable for both top sealing and side sealing)

Dimension(L*W*H): 310*240*340mm

Weight: 40kg

Package size (L*W*H): 350*280*380mm

Package weight: 58kg

Datasheet
