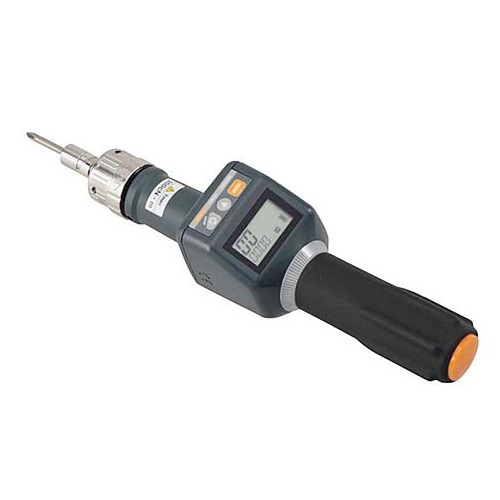

Tohnichi STC200CN2-G-BT Indicating Type Torque Screwdriver

Torque range [cN • m]: 40～200

Torque range [kgf • cm]: 4～20

Torque range [lbf • in]: 4～17

Overall length [mm]: 230

Weight [g]: 325

Measurement mode: Tightening mode/Inspection mode

Data memory: 1000

Remaining battery: 4 steps

OK/NG judgement: Buzzer and LED when the upper and lower limits have been set

Other function: Auto power off, Auto memory/reset, Auto zero

Power source: Lithium ion battery

Data output: USB

Continuous use: Approx. 30 hours

Battery charge: AC adapter: Approx. 5 hours, PC(via USB): Approx. 10hours

Opearting temperature range: 0～40℃ below 85%RH (no condensation)

Bluetooth (R) VERSION: V3.0

Communication method: AFH

Modulation method: GFSK

Radio output power: 4dBm

Tranmission power class: Class2

Profile: SPP

Communication distance: Approx 10m

Continuous use: Approx. 15hrs
