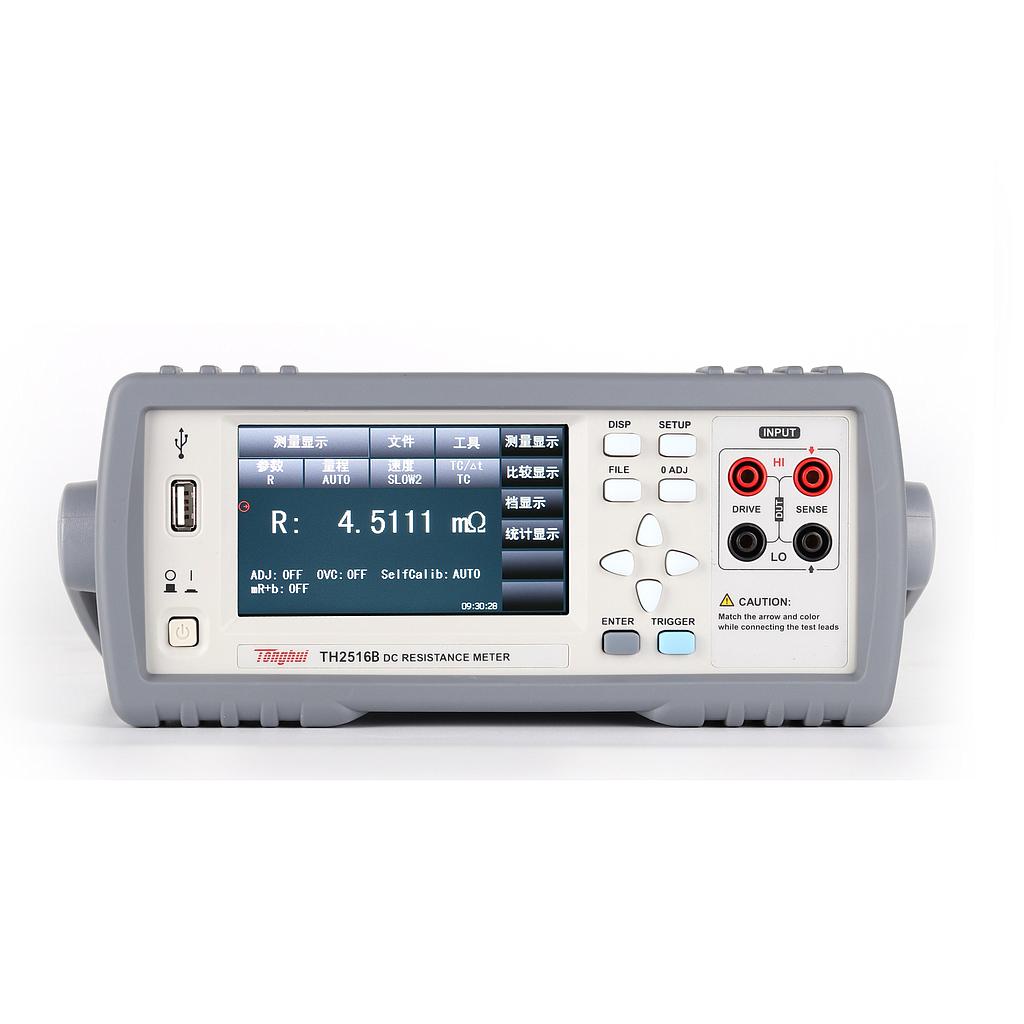

Tonghui TH2516B DC Resistance Meter (10μΩ –20kΩ)

Display: 24-bit, 480 X 272 and touch TFT LCD screen

Reading digits: 4 ½ digits

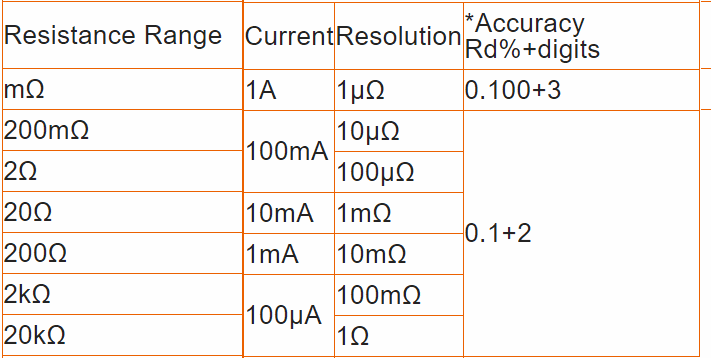

Resistance measurement:

Measurement range: 10μΩ –20kΩ

Measurement function

Resistance measurement time: FAST:10ms; MED:25ms; SLOW1:115ms; SLOW2:455ms (Above data is correct when DISPLAY is OFF; When DISPLY is ON, 20ms should be added.)

Temperature measurement time: ----

Test terminal: 4-terminal

Range switch: AUTO and Manual

Trigger mode: Internal, Manual, External, BUS

General specification

Working condition: Temperature:0℃ - 40℃，Humidity:≤ 80%RH

Storage condition: Temperature:-10℃-50℃,Humidity: ≤90%RH

Accuracy guarantee condition: Temperature:18℃ - 28℃，Humidity:≤ 80%RH

Power

- Voltage: 99V—121V,198V—242V

- Frequency: 47.5Hz—63Hz

Consumption: 30 VA

Dimension: 215mm×89mm×360mm（net size） 235mm×104mm×360mm（with foam sheath）

Weight: Approx. 3.6kg
