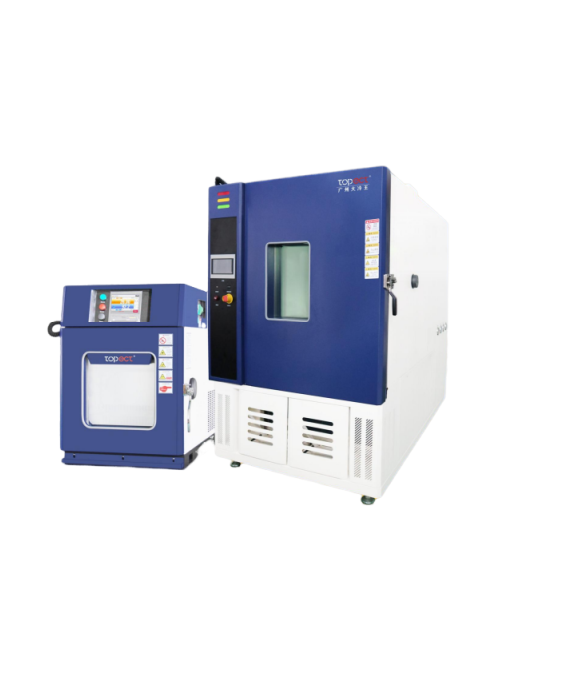

Product images are for illustrative purposes only.
Internal Volume (L): 500
Inner Dimension (mm)
W: 800
H: 900
D:700
Outer Dimension (mm)
W: 1000
H: 2000
D: 1770
Temperature Range(℃): -20～150
Humidity Range (%RH):(20～98)%RH (20～85)℃
Temperature Fluctuation (℃): ±0.5℃
Temperature Deviation(℃): ±2.0℃
Humidity Deviation (%RH):±3.0%RH (＞75%RH) ; ±5.0%RH (≤75%RH)
Temperature Rise Time: -20～150℃ ≤55min
Temperature Fall Time: +20～-20℃ ≤40min
Temperature and Humidity Regulation Mode: BTHC Balanced temperature and humidity control mode (SSR humidity regulation)
Power Supply(V)/(Hz)
AC voltage 380V±15V
Frequency 50Hz±0.5Hz
3-phase 4-wire & earthing protection
Maximum Current (A): 14
Power (kW): 6
Weight (kg): 530
Operating Environment:
Temperature: (5～36)℃
Humidity: (30～85)%RH
Pressure: (86～106)kPa
Material
Inner Chamber: Stainless steel sheet SS304
Outer Chamber: Two-sided galvanized plate, with the surface treated by electrostatic powder coating
Thermal Insulation: High temperature fibre cotton & polyurethane foam
Actuator
Fan: Extended shaft centrifugal fan
Refrigerator: Low-noise piston type compressor or scroll compressor
Heater: Imported nickel-chrome
Humidifier b: 316 stainless steel humidifier (external steam generator)
Controller System
Touch Screen & PLC: 7.0", 800×480 resolution, mixed output PLC
Running Mode: Fixed mode,Program mode
Setting Mode: Simplified Chinese & English, input by touch
Program Capacity: 269 groups of programs, each consisting of 50 sections for setting 32000 times of cycles. The program has link function
Setting Range: Can be adjusted to ±5.0℃ according to the maximum range of the equipment, Eg. humidity range (5～100)%RH (humidity equipment)
Display Resolution: Temperature: 0.01℃, humidity: 0.1%RH (humidity equipment), time: s
Sensor: PT100 (platinum resistor)，Humidity sensor
Control Mode: Low-temperature cold balance & anti-integral saturation PID & auto-tuning
Curve Record: With automatic data storage function. User can browse the data by sliding on the screen; screen shot function is available.
Additional Function: Fault alarm and cause handling prompt function: Timed startup/stop, power failure protection, user permission function.
Communication Function: Support RS485, LAN (internet port), GPRS (phone) and other communication modes, which enable users to conduct remote monitoring simply. Data acquisition: IBM PC compatible machine. CPU above PII, memory above 128M, operating system in Simplified Chinese / English.
Data Acquisition
1. With USB interface, curve data of three months can be saved, and historical curve and test data can be downloaded.
2. It can be an alternative to the recorder. With built-in extra memory, 3 months of data under the condition that the machine runs for 24 hours continuously can be saved. The sampling time is 1min. It can replace computer storage. Users can export historical data through USB disk (time is optional) and generate files in the format of CSV.
3. Connect to PC (optional) - Record testing data through computer monitoring software. It can display the curve. PC can be used as remote terminal to realize remote monitoring.
Water Supply
Water Supply Mode: Draw water by water pump
Water Storage Tank: 10L/20L/40L
Water Quality: Resistivity >500 Ω·m
Standard Configuration: 1 Electric heating observation window, 1 testing hole of Φ50 respectively on each side, 2 sets of sample holders, 4 casters
Safety Device: Leakage switch, motor, compressor, phase sequence, over-temperature protection, dry burn protection. etc.
Topect touch-type temperature and humidity controller is specially developed by Topect for the industry of environmental equipment; it consists of touch screen, PLC, temperature module and humidity module, powerful in functions. The touch screen is equipped with visual editing software, PLC logic programme, extensible I&O port and extensible multi-point temperature; USB interface allows users to export data (time optional). Remote monitoring is realized through RS485 communication and PC connection.
The controllers are developed independently by our company with high performance. Characterized by 65536 color 7’’, TFT true-color touch screen and 800×480 dot matrix, it ensures realistic effects and comfortable operation. In addition, the entire interface is concise and clear, convenient and reliable.
Our controllers have powerful debugging protection function, fault alarm and troubleshooting description; extensible I&O port can be used to prepare different control programs according to requirement to realize different functions; they can be developed separately according to actual environment but can be controlled by computer intensively through software. The controller interface adopts consistent style, convenient for users’ operation.
With PLC program control, this system has timed running & stop function and power failure protection function as well as better stability.It can be connected to a centralized monitoring software and supports communication protocol, convenient for users’ secondary development; multiple test chambers can be monitored remotely.
