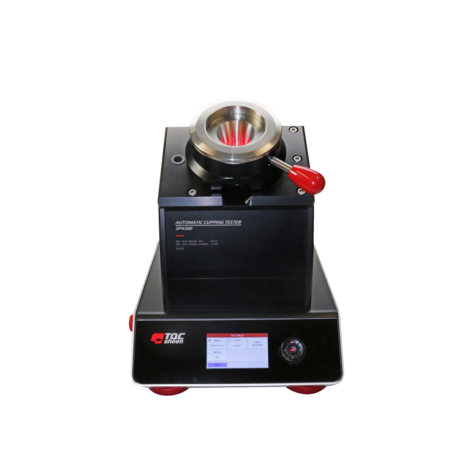

TQCSheen SP4500 Automatic Cupping Tester (0.01-0.7mm/s; ±1%)

Technical Data

Indenter speed: 0.01–0.70mm/s

Stroke length: 0-12mm

Max panel width: 105mm

Max. panel thickness steel: 0.8 mm

Max. speed steel panel: 0.6 mm/s

Max. panel thickness aluminium: 1.2mm

Max. speed aluminium panel: 0.7mm/s

Max. indentation force: 35kN (3500kg)

Indenter width (Ball) Ø: 20mm

Die diameter: 27 mm

Accuracy

Indenter speed : +/- 1% of set speed

Stroke length : +/- 0.01mm or 0.2% whichever is greater

Dimensions and Weight:

Depth: 390mm

Width: 355mm

Height: 450mm

Net weight: approx. 29kg

Power supply: 100-240VAC, 50-60Hz

Power consumption: Max. 90 Watt

Display: Full Colour 480x272 pixel TFT display

Safety: Emergency button, integrated acoustic alarm

Function: 5-key navigation switch with Triple I Control

Scope of Supply:

• TQC Sheen Automatic Cupping Test

• Power cord

• Calibration plate

• Loupe & Microscope fixture rod

• Reference panel

• Manual

• Calibration Certificate

Accessories / Optional Items

LD6182 - USB Digital microscope

SP4375 - Foil clamp

SP4331 - Calibration plate
