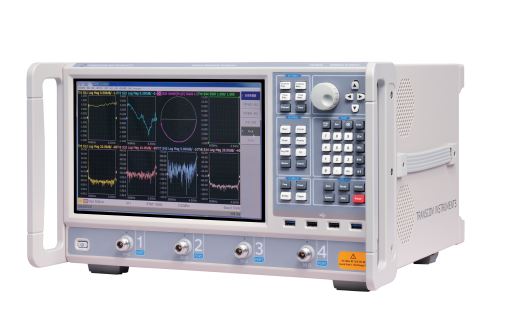

T5280A is a high performance VNA, large frequency range, large dynamic range, low Noise level, low trace noise, it can be widely used for microwave device measurement in wireless communication, broadcast, TV device, radar device and semiconductor.
|
Measurement Range |
Product Name |
||||
|
Impedance |
50Ω or 75Ω |
||||
|
Test port connector |
N-type, female |
||||
|
Number of test ports |
2 |
||||
|
Frequency range |
300kHz to 8GHz |
||||
|
Full CW frequency accuracy |
±5×10-6 |
||||
|
Frequency resolution |
1Hz |
||||
|
Number of measurement points |
2 to 10001 |
||||
|
Measurement bandwidths |
1Hz to 30kHz (with 1/1.5/2/3/5/7 steps) |
||||
|
Dynamic range (IF bandwidth 10 Hz) |
130dB, typ.135dB |
||||
|
Measurement Speed |
|||||
|
Measurement time per point |
100μs |
||||
|
Source to receiver port switchover time |
＜10ms |
||||
|
Typical cycle time versus number of measurement points（IFBW 30kHz） |
51 |
201 |
401 |
1601 |
|
|
Uncorrected（Start 300 kHz, stop 10 MHz） |
13.1ms |
51.3ms |
102.3ms |
408.3ms |
|
|
Full two-port calibration（Start 300 kHz, stop 10 MHz） |
45.5ms |
122.0ms |
230.5ms |
840.5ms |
|
|
Uncorrected（Start 10 MHz, stop 3 GHz） |
6.5ms |
21.1ms |
40.5ms |
157.7ms |
|
|
Full two-port calibration（Start 10 MHz, stop 3 GHz） |
32.4ms |
61.7ms |
100.3ms |
333.0ms |
|
Option:
1- 5301N50 High Precision, DC to 3GHz, 50Ω, N-type Calibration Kit Set
5301N50-30101 High Precision, SOL(N-f), 50Ω, DC to 3GHz
5301N50-30102 High Precision, SOL(N-m), 50Ω, DC to 3GHz
5301N50-30103 High Precision, THROUGH N(f) - N(f), 50Ω, DC to 3GHz
5301N50-30104 High Precision, THROUGH N(m) - N(m), 50Ω, DC to 3GHz
2- 5901N50 High Precision, DC to 9GHz, 50Ω, N-type Calibration Kit Set
5901N50-90001 High Precision, SHORT N(f), 50Ω, DC - 9GHz
5901N50-90003 High Precision, OPEN N(f), 50Ω, DC - 9GHz
5901N50-90005 High Precision, LOAD N(f), 50Ω, DC - 9GHz
3- 5901N50-90007 High Precision, THROUGH N(f) - N(f), 50Ω, DC - 9GHz
5901N50-90002 High Precision, SHORT N(m), 50Ω, DC - 9GHz
5901N50-90004 High Precision, OPEN N(m), 50Ω, DC - 9GHz
5901N50-90006 High Precision, LOAD N(m), 50Ω, DC - 9GHz
5901N50-90008 High Precision, THROUGH N(m) - N(m), 50Ω, DC - 9GHz
4- 5902S50 High Precision, DC to 9GHz, 50Ω, SMA Calibration Kit 5,050
5902S50-90201 High Precision, SOL(SMA-f), 50Ω, DC to 9GHz
5902S50-90202 High Precision, SOL(SMA-m), 50Ω, DC to 9GHz
5902S50-90203 High Precision, THROUGH SMA(f) - SMA(f), 50Ω, DC to 9GHz
5902S50-90204 High Precision, THROUGH SMA(m) - SMA(m), 50Ω, DC to 9GHz
5- T5_RFCAB-NmNm_18101 Test Cable - DC to 18GHz, 50Ω, N(m)-N(m) , 1m
6- T5_RFCAB-NmSMAm_18102 Test Cable - DC to 18GHz, 50Ω, N(m)-SMA(m), 1m
7- T5_RFCAB-NmNm_60101 Test Cable - DC to 6GHz, 50Ω, N(m)-N(m), VSWR<1.1, IL<1.2db span="">
8- T5_RFCAB-NmSMAm_60102 Test Cable - DC to 6GHz, 50Ω, N(m)-SMA(m), VSWR<1.1, IL<1.2db span="">
9- VNA_ATE Automated test software for VNA
10- T5_RM VNA rack mount kit
11- T5_FH VNA front handle kit
