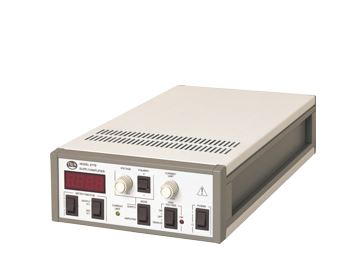

Trek 677B HIGH-VOLTAGE POWER AMPLIFIER

Output Voltage Range: 0 to ±2 kV DC or peak AC
Output Current Range:0 to ±5 mA
Input Voltage Range: 0 to ± 10 V DC or peak AC
Input Impedance: 10 kΩ, nominal
DC Voltage Gain: 200 V/V
DC Voltage Gain Accuracy: Better than 0.1% of full scale
Offset Voltage: Less than 5 mV
Output Noise: Less than 100 mV rms*
Slew Rate (10% to 90%): Greater than 15 V/µs
Settling Time: Less than 300 µs for a 0 to 2 kV step
Large Signal Bandwidth : DC to greater 1.2 kHz (1%distortion)
Small Signal Bandwidth (-3dB): DC to greater than 5 kHz
Dimensions:110 mm H x 223 mm W x 432 mm D
Weight:4 Kg
