General information
Continuity test: An acoustic signal is emitted if the resistance is less than 50 Ω
Diode test: Test current: <1.5 mA; max. test voltage: 3.3 VDC
LC display: 3 3/4 digits; 4000 count TFT
Menu languages: German; Chinese; English; Italian; Spanish; French; Dutch; Polish; Turkish; Portuguese
Exceedance of the measuring range: OL will be displayed
Polarity : Automatic (no indication for positive); minus (-) sign for negative
Measuring speed: 3 x per second; nominal
Bluetooth frequency range: 2.4 GHz
Bluetooth max. transmission power: 0 dBm
Battery status indication: The battery icon will be displayed when the battery voltage drops below the operating voltage threshold
Battery: 1 x 3.7 V lithium-ion battery; 1400 mAh
Battery charging socket: micro USB (5 VDC; 1A)
Fuse: 10 A / 600 V
Operating temperature: 5 °C to 40 °C (41 °F to 104 °F)
Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F)
Max. relative humidity: < 80 %
Degree of pollution: 2
Insulation: double insulation
Operating height above sea level: max. 2000 m (6562 ft)
Type of protection: IP40
Weight: approx. 540 g
Dimensions: 175 x 85 x 55 mm
Automatic switch-off: after 15 to 60 minutes of non-use (can be deactivated)
Shock test: up to a drop height of 2.0 m (6.5 ft)
Safety : This measuring device is designed for indoor use and complies with measuring category CAT III up to 600 V and measuring category CAT IV up to 300 V.
Thermal imaging camera
Temperature range: -20 °C to +260 °C (-4 °F to +500 °F)
Minimum focusing distance: 0.5 m
Field of view (FOV): 15.6 x 15.6 °
Spatial resolution (IFOV): 2.26 mrad
Thermal image resolution: 120 x 120 pixels
Focusing mode: Fixed focus
Focal length: 7.5 mm
Frame rate: 50 Hz
Detector type: Focal Plane Array/uncooled microbolometer
Infrared spectrum: 8 µm to 14 µm
Accuracy: ±3 °C (± 5.4 °F) or ±3 % (at an ambient temperature of 10 °C to 35 °C; object temperature >0 °C)
Measuring ranges
DC voltage (V DC): 400 mV~600 V
AC voltage TRMS (V AC): 4 V~600 V
AC and DC voltage TRMS (V AC+DC): 4 V~600 V
Direct current (A DC): 400 µA~10 A
Alternating current TRMS (A AC): 400 µA~10 A
Resistance and continuity test: 400 Ω~40 MΩ
Frequency measurement ( Hz): 40 Hz – 10 MHz
Duty factor: 10.0 – 90.0 %
Capacity: 40 nF~4000 μF
Scope of delivery

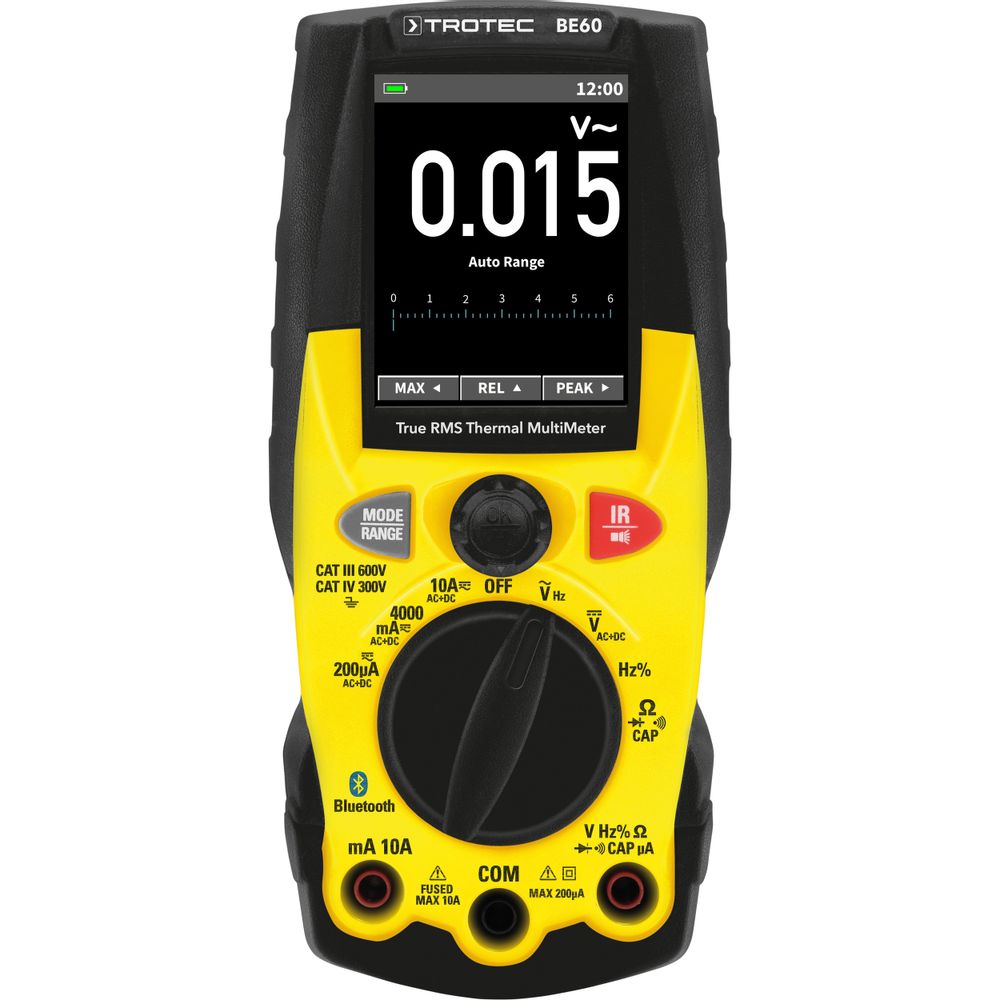

• 1 x Device BE60
• 2 x Measuring tip
• 1 x USB cable
• 1 x Transport case
• 1 x Quick guide
