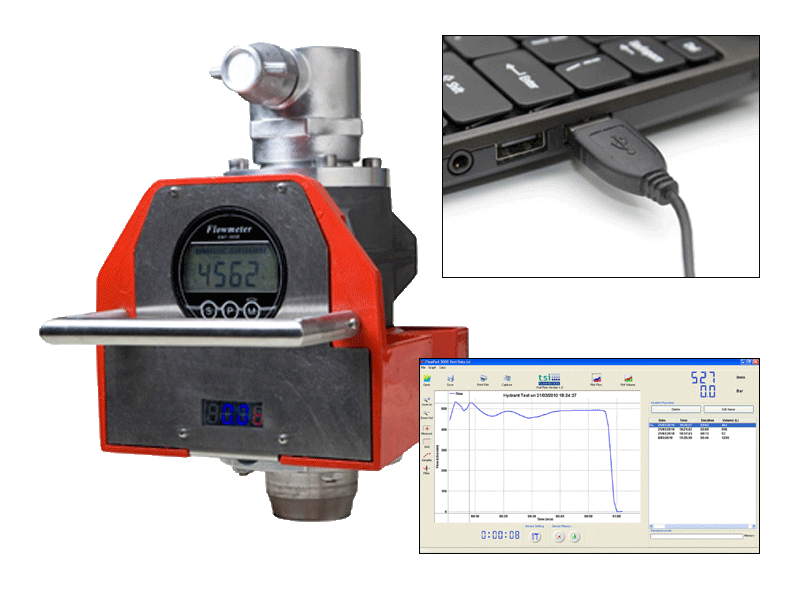

Manufacturer: TSI Flowmeter
Model: Flowmaster 250 DL
Part No.: 34-2005
Origin: Ireland
Warranty: 12 months
FLOWMETER
Type: Electromagnetic
Operating Range: 30 to 3,000 lpm, can be extended to 5,000 lpm
Accuracy: 30 to 750 lpm: ±15 lpm > 750 lpm: ± 2%
Power Supply: Internal battery 12V DC, 2.2 Ah
Up to 10 hours continuous operation External charging device included as standard. Mains charger is supplied with either UK, euro or USA style plug.
Operating temperature: -10 to +50 ºC
Weight: 12.5kg
Dimensions: 210 (H) x 240 (W) x 390 (L) mm
Housing: Solid and corrosion resistant LM25 aluminium
Colour: Red RAL 3020/natural aluminium
PRESSURE MEASUREMENT
Sensor: Piezoresistive pressure transducer
Range: 0-25bar in 0.1bar increments
Accuracy: ± 1%
Readout: High brightness LED
Readings in BAR or PSI
DATA LOGGER
Record 12 hours of flow and pressure data at 1 second recording interval
Upload data to laptop by USB
Auto logging feature whereby data logging starts and stops automatically according to flow rate
LED indication of logging in progress
Can also log directly to PC using USB cable supplied
PC SOFTWARE
FMSv4.5 software for file management and report preparation is supplied.
