Function
Display unit:
Invoke maximum 90 pages of display parameters
Automatic switch a display parameter by an inside timer
Designated PC software :
Setting of the display parameter
Setting of switching timing of the display parameter
Select from varieties of font: Gothic, Narrow gothic, Round gothic, Minchotai, Taiminchotai
Setting range
Characters (JIS fist grade, JIS second grade, extended character almost 7,400 characters)
Light up by each 1 dot / Free drawing to specify unlighted places
Refresh rate: Standard 8.3333[ms] = 120[Hz]
Changeable range: 3.3333-263.333[ms] 120-3.797 [Hz]
Display / Operation
LED display unit
External communication control (serial communication)
Communication I / F
RS-232C
RS-485
Power-supply voltage: Rated input power: DC 5[V] 120[W]
Power consumption [VA]: Less than 12[A]
Operating environment
Temperature: 0-40[℃]
Humidity: less than 80[%] without dew condensation
Dimensions (WxHxD) [mm]: 963.5x195.5x67
Weight [kg]: 3.2
Extension: DC 5V power supply unit
Datasheet

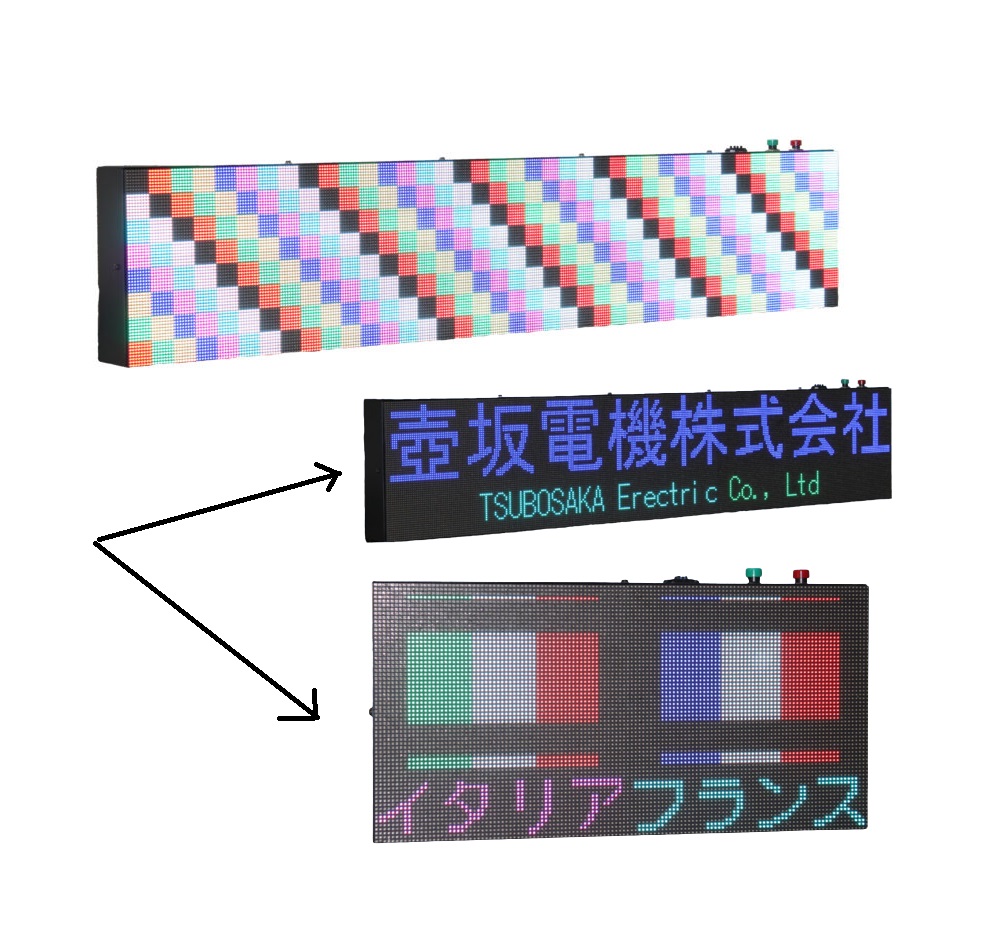

Illumination reproduces accurately light flickers for an evaluation of blind spots of a camera.
Change any patterns, words or figures within 7400 characters x 5 points font.
Change refresh rate to simulate multiple displays by an one device.
7 colors
Resolution: 320 x 64 = 20.480[dot]
Pixel pitch: 3.0[mm]
