Direct access to our certified experts

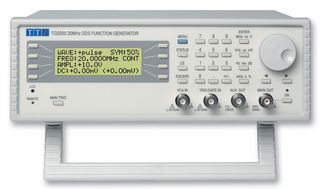

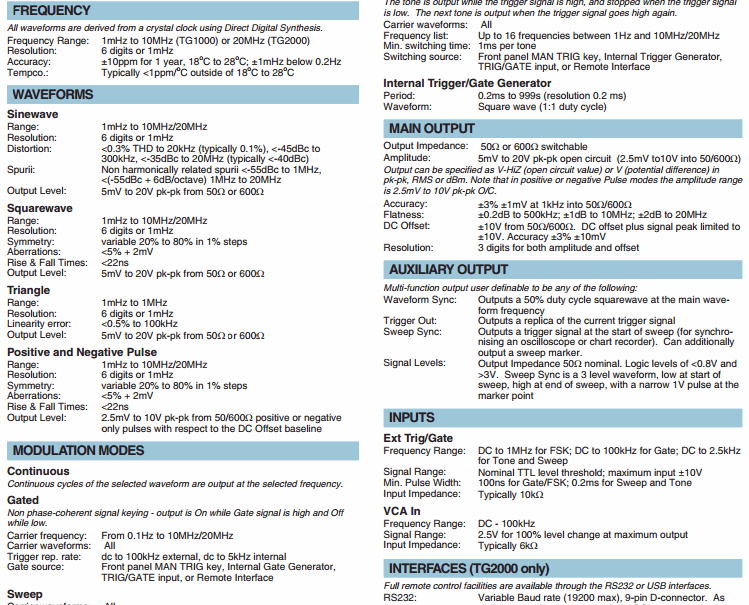

FREQUENCY
All waveforms are derived from a crystal clock using Direct Digital Synthesis.
Frequency Range: 1mHz to 10MHz (TG1000) or 20MHz (TG2000)
Resolution: 6 digits or 1mHz
Accuracy: ±10ppm for 1 year, 18o
C to 28o
C; ±1mHz below 0.2Hz
Tempco.: Typically <1ppm/o
C outside of 18o
C to 28o
C
WAVEFORMS
Sinewave
Range: 1mHz to 10MHz/20MHz
Resolution: 6 digits or 1mHz
Distortion: <0.3% THD to 20kHz (typically 0.1%), <-45dbc to="" br=""> 300kHz, <-35dbc to="" 20mhz="" typically="" -40dbc="" br=""> Spurii: Non harmonically related spurii <-55dbc to="" 1mhz="" br=""> <(-55dBc + 6dB/octave) 1MHz to 20MHz
Output Level: 5mV to 20V pk-pk from 50 or 600
Squarewave
Range: 1mHz to 10MHz/20MHz
Resolution: 6 digits or 1mHz
Symmetry: variable 20% to 80% in 1% steps
Aberrations: <5% + 2mV
Rise & Fall Times: <22ns
Output Level: 5mV to 20V pk-pk from 50 or 600
Triangle
Range: 1mHz to 1MHz
Resolution: 6 digits or 1mHz
Linearity error: <0.5% to 100kHz
Output Level: 5mV to 20V pk-pk from 50 or 600
Positive and Negative Pulse
Range: 1mHz to 10MHz/20MHz
Resolution: 6 digits or 1mHz
Symmetry: variable 20% to 80% in 1% steps
Aberrations: <5% + 2mV
Rise & Fall Times: <22ns
Output Level: 2.5mV to 10V pk-pk from 50/600 positive or negative
only pulses with respect to the DC Offset baseline
MODULATION MODES
Continuous
Continuous cycles of the selected waveform are output at the selected frequency.
Gated
Non phase-coherent signal keying - output is On while Gate signal is high and Off
while low.
Carrier frequency: From 0.1Hz to 10MHz/20MHz
Carrier waveforms: All
Trigger rep. rate: dc to 100kHz external, dc to 5kHz internal
Gate source: Front panel MAN TRIG key, Internal Gate Generator,
TRIG/GATE input, or Remote Interface
Sweep
Carrier waveforms: All
Sweep Mode: Linear or logarithmic, single or continuous
Sweep Width: 0.2Hz to 10MHz/20MHz in one range. Phase continuous.
Independent setting of the start and stop frequency
Sweep Time: 50ms to 999s (3 digit resolution)
Markers: Available from AUX output. Variable during sweep
Sweep Trigger
source:
The sweep may be free run or triggered from: front panel
MAN TRIG key, TRIG/GATE input, or Remote Interface
Amplitude Modulation
Carrier frequency: 1mHz to 10MHz/20MHz
Carrier waveforms: All
Modulation source: VCA IN socket
Frequency Shift Keying (FSK)
Phase coherent switching between two selected frequencies at a rate defined by the
switching signal source.
Carrier frequency: 1Hz to 10MHz/20MHz
Carrier waveforms: All
Switch rate: dc to 5kHz (internal), dc to 1MHz (external)
Switching signal
source:
Front panel MAN TRIG key, Internal Trigger Generator,
TRIG/GATE input, or Remote Interface
Tone
