STANDARD WAVEFORMS
SINE

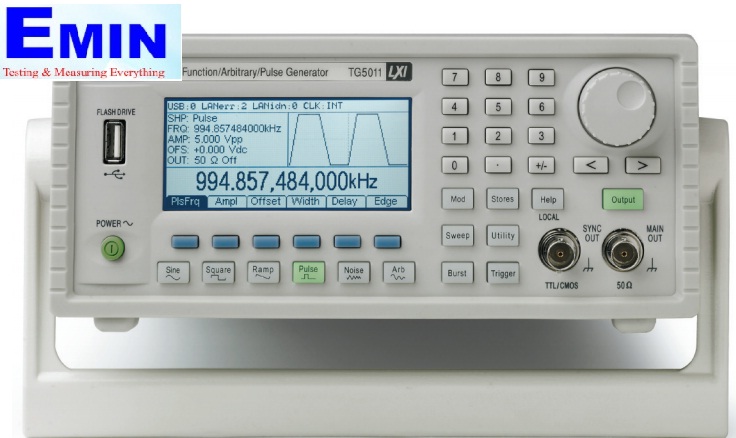

Note that purity specifications above 25MHz apply only to the TG5011.
Frequency Range: 1µHz to 50MHz (TG2511 - 1µHz to 25MHz)
Frequency Resolution: 1µHz, 14 digits
Output Level: 10mVp-p to 10Vp-p into 50 W
Amplitude Flatness
Relative to 1kHz: <100khz 0="" 1db="" 5mhz="" 0="" 15db="" 25mhz="" 0="" 3db="" 50mhz="" 0="" 5db="" br="">
DC to 20kHz -65dBc -65dBc
20kHz to 100kHz -60dBc -60dBc
100kHz to 1MHz -45dBc -45dBc
1MHz to 25MHz -40dBc -35dBc
25MHz to 50MHz -40dBc -28dBc
Non-Harmonic Spurii: <–60dBc to 1MHz, <–60dBc + 6dB/octave 1MHz to 50MHz
Phase Noise: -115dBc/Hz, typical (10kHz offset)
SQUARE
Frequency Range: 1µHz to 50MHz (TG2511 - 1µHz to 25MHz)
Resolution: 1µHz, 14 digits
Output Level: 10mVp-p to 10Vp-p into 50 W
Rise and Fall Times: <8ns tg2511="" -="" 13ns="" br="">
Variable Duty Cycle: 20% to 80% to 10MHz, 0.1% resolution,
40% to 60% to 25 MHz, 0.1% resolution, 50% (fixed) above 25MHz
Asymmetry: 1% of period + 5ns (@ 50% duty)
Jitter (RMS): 0.5ns + 100 ppm of period
RAMP & TRIANGLE
Frequency Range: 1µHz to 500kHz (TG2511 - 1µHz to 250kHz)
Resolution: 1µHz, 12 digits
Output Level: 10mVp-p to 10Vp-p into 50 W
Linearity Error: <0.1% to 30 kHz
Variable Symmetry: 0.0 % to 100.0 %, 0.1% resolution.
Single key operation of 50% (Triangle)
Note the triangle and sawtooth waveforms are also available from the arbitrary waveform
menu enabling repetition rates of up to 10MHz/6MHz. Waveform quality will deteriorate at
higher frequencies however.
PULSE
Frequency Range: 500 µHz to 12.5MHz (TG2511 - 500 µHz to 6.25MHz)
Resolution: 1µHz , 14 digits
Output Level: 10mVp-p to 10Vp-p into 50 W
Overshoot: <5%
Jitter: 300ps + 0.01% of period
Rise/Fall Times: Rise and Fall times can be independently varied or can be varied
together simultaneously.
Edge Range: <8ns to="" 40="" s="" tg2511="" -="" 13ns="" to="" 40="" s="" br="">
10ns for rise/fall >2µs and ≤40µs
Width Range: 20ns to 2000s (20ns minimum for period ≤40s; 200 ns minimum for
period >40s and ≤400s; 2µs minimum for period >400s)
Width Resolution: 10ns for period ≤40s; 100ns for period >40s and ≤400s;
1µs for period >400s
Delay Range: 0ns to 2000s
Delay Resolution: 10ns for period ≤40s; 100ns for period >40s and ≤400s;
1µs for period >400s
ARBITRARY WAVEFORMS
In-built Arbitrary Waveforms
Sinc, Exponential Rise, Logarithmic Rise, DC, Positive and Negative Ramps and Square
waveforms are built-in and always present.
Additional waveforms are supplied on disc (Cardiac, Gaussian, Exponential Fall, Logarithmic
Fall).
User defined Arbitrary Waveforms
Up to 4 additional or user defined waveforms may be stored in non-volatile memory.
Waveforms can be defined by downloading of waveform data via USB memory stick, remote
interfaces, or editing via the instrument’s front panel.
Waveform Size: 2 points to 131072 points (128k).
Memory Size: Up to 4 waveforms of up to 64k points, or 2 waveforms of up to 128k
points, (or 2 of 64k points plus 1 of 128k points).
External Storage: Up to 1,000 waveforms per USB memory stick.
Vertical Resolution: 14 bits
Frequency Range: 1µHz to 10MHz (TG2511 - 1µHz to 6MHz)
Resolution: 1µHz , 14 digits
Output Level: 10mVp-p to 10Vpp into 50 W
Sampling rate: 125MS/s
Output Filter: Selects between 50MHz Elliptic or 20MHz Bessel filter depending on
the waveform.
Arbitrary Waveform Creation and Editing
Waveform creation and editing is provided within the generator including point insertion, line
drawing and interpolation.
WAVEFORM MANAGER PLUS
Both generators are supplied with Waveform Manager Plus. This Windows* based software
provides a sophisticated tool set for the creation, editing and management of arbitrary
waveforms. The waveforms can be transferred to the generator either using a USB memory
stick, or by the digital interfaces.
