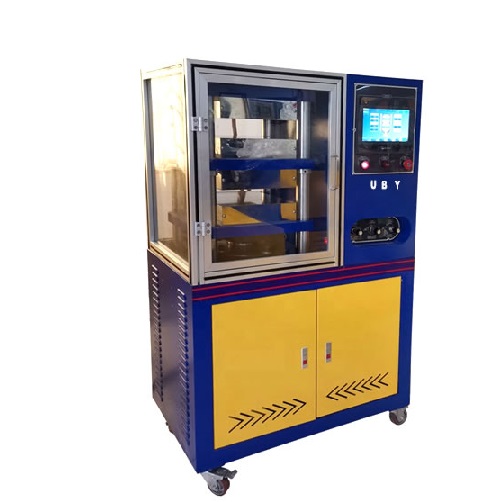

Uby Tech UP-6170B Rubber Vulcanizing Press Machine (10T~50T)

Capacity: 10T,20T,30T,50T

Temp. Range: Room temp. ~300℃

Temp. Controller: LED Indicator,press key set input, the value indicate output

Timer : LED display,time range 0.1S~99min~9.9hr

Heating type: Electrical Heating

Hot pressure plate: 300×300mm / 350x350mm / 500x500mm optional

Cold pressure plate: 300×300mm / 350x350mm / 500x500mm optional

Distance of pressure plate: 100mm

Pressure material: SKD chromium-molybdenum alloy

Pressure surface: Mirror chrome plated

Cooling temperature: Room temp. ~+5℃

Cooling type: Water cooling / Air cooling (optional)

Oil cylinder stroke: Max 200mm

Oil cylinder speed: 11mm/s

Pressure gauge: 0~350kg/sq.cm

Power: 10.6HP

Dimension (W×D×H): 1000×500×1500 mm

Power supply: 3 phase,AC380V,20A (or customize)

Weight: About 600kg
