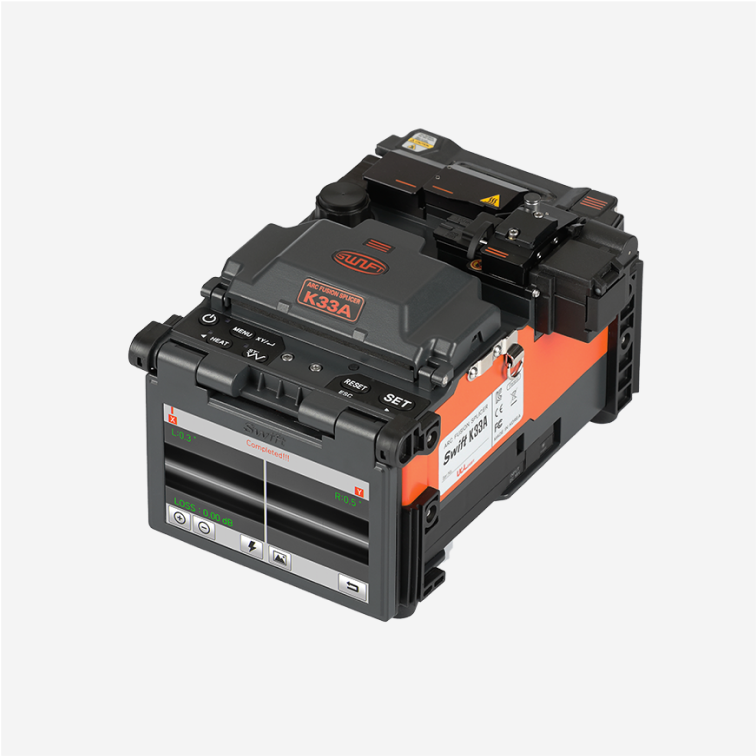

UCLswift K33A-HDC Fusion Splicer

Performance Specifications

General

Fiber alignment: IPAAS Core Alignment

Fiber count: Single fiber

Applicable fiber dimensions: Cladding diameter: 80 ~ 150μm, Coating diameter: 100μm ~ 3mm

Applicable type of fibers: SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), SM (G.657 A1, A2/B2, B3), SM (G.654 E)

Fiber cleave length: 250μm: 5mm to 16mm; 900μm: 8mm to 16mm

Storage of splice result: The last 10,000 results to be stored in the internal memory. (Image 10,000 results)

Tension test: 2N/4.4N (Option)

Applicable protection sleeve: 40mm or 60mm (Fiber) / 28mm or 32mm (Connector)

Splicing Performance

Splicing time: Typical 6 sec. (Quick mode)

Average splice loss: SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB

Return loss: >60dB

Splicing modes: Splice mode: 300, Heat mode: 100, Strip mode: 50

Splice loss estimate: Available

Sleeve heating time: 9 sec. (IS-45 sleeve, IS-45 mode), 13 sec. (IS-60 sleeve, IS-60 mode)

Display & Viewing

Fiber view and magnification: X/Y: 200X  Max: 670X

Viewing method and display: Two CMOS cameras and 5.0-inch color LCD monitor with Electrostatic touchscreen

Power & Battery

Power supply: 100 ~ 240V

Battery life with heat-shrink: Typical 230 cycles (6,000mAh)

Electrode life: Up to 18,000 splices

Terminals: USB, external power (DC 12V available for car cigar jack)

Cleaver: CF-07FT

Cleaver blade life: Max. 110,000 fibers

Environmental & Physical

Operating condition

Altitude: 0–5,000m above sea level

Temperature: -10°C ~ 50°C

Humidity: 0 ~ 95%, Wind: 15m/s

Non-condensing, dust proof, water proof, shock proof

Storage condition: Temperature: -40°C ~ 80°C; Humidity: 0 ~ 95%

Dimensions and weight: 136(W) × 215(L) × 137(H) mm (excluding rubber); 2.45 kg (including battery)

Standard Package

Arc Fusion Splicer: SWIFT K33A: 1

User Guide: Download: uclswift.com:

Cooling Tray: CT-01: 1

Transporting Case: Hard Case: 1

Battery: 4,700mAh: 1

AC Adapte: 1

Tool Box: 1

Sleeve Loader:  2
