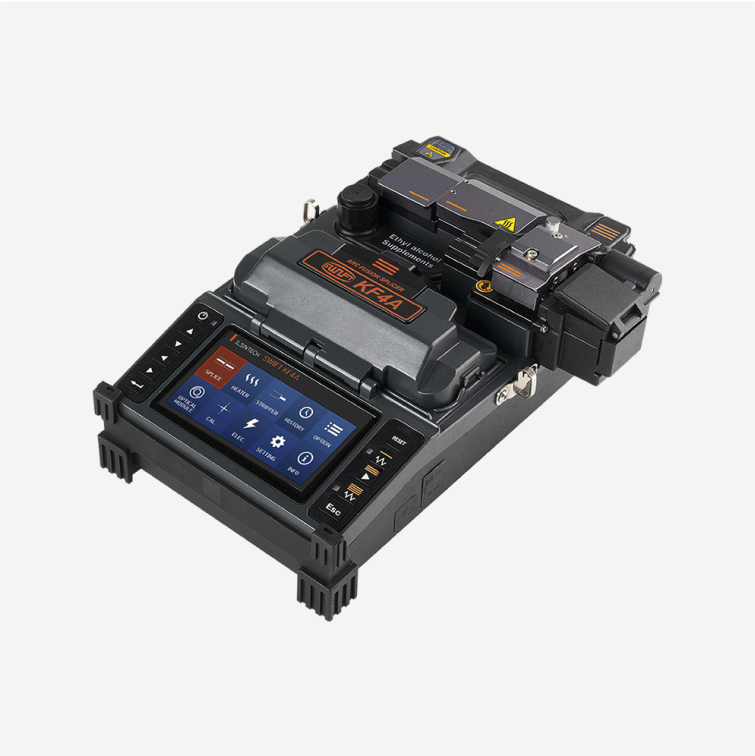

UCLswift KF4A-HDC Fusion Splicer

General

Fiber alignment: Active Clad Alignment

Applicable fiber dimensions: Cladding diameter: 125㎛; Coating diameter: 150㎛~3mm

Fiber cleave length: 7mm to 16mm

Tension test: 1.96N to 2.25N

Fiber count: Single fiber

Applicable type of fibers: SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), SM(G.657 A1, A2/B2, B3)

Storage of splice result: Data : Up to 5,000ea, Image : Up to 5,000ea

Applicable protection sleeve: 60mm, 40mm and micro sleeves

Splicing Performance

Splicing time: Typical 7 sec with SM

Average splice loss: SM: 0.03dB, MM: 0.01dB, DS:0.05dB, NZDS: 0.05dB

Return loss: >60dB

Splice loss estimate: Available

Sleeve heating time: Typical 13 sec with IS-60 mode, IS-60 sleeve

Splicing modes: Splice mode: 300, Heat mode: 100, Strip mode: 50

Display & Viewing

Fiber view and magnification: X/Y 110X, Max 220X

Viewing method and display: Two AXIS CMOS cameras and 3.5-inch color LCD monitor

Power & Battery (Blade life may be changed  under the condition of working environment.)

Power supply: 100~240V

Electrode life: Up to 18,000 splices

Cleaver: CF-07FT

Battery life with heat-shrink: Typical 150 cycles with 3,400mAh

Terminals: USB, External power (DC 12V available for car cigar jack)

Cleaver blade life*: Max. 110,000 fibers

Environmental & Physical

Operating condition

Altitude: 0–5,000m above sea level

Temperature: -10°C~50°C

Humidity: 0~95%, Wind: 15m/s

Non-condensing, dust proof,

water proof, shock proof

Storage condition

Temperature: -40°C~80°C

Humidity: 0~95%

Dimensions and weight

132(W) x 212(L) x 73(H)mm (Without Rubber Protector)

1.5kg (Excluding bumper)

Standard Package

Arc Fusion Splicer: SWIFT KF4A: 1

User Guide: Download: uclswift.com:

Cooling Tray:  1

Transporting Case: Hard Case: 1

Battery: 3,400mAh: 1

Battery Charger: 100-240V: 1

Fiber Holder: 1 pair

USB Cable: 2
