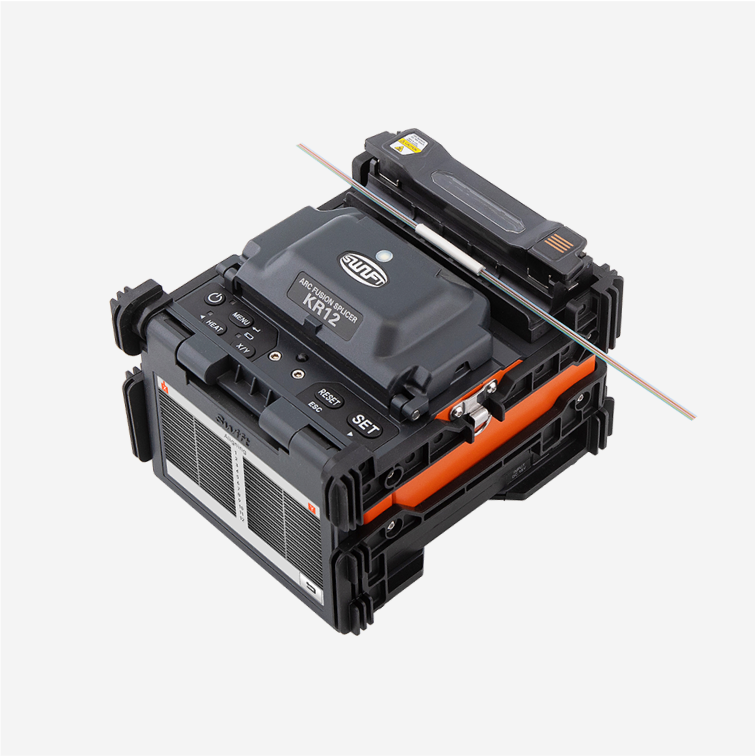

UCLswift KR12 Ribbon Splicer

Fiber alignment: Ribbon

Applicable fibers: SM(G.652), MM(G.651), DS(G.653), NZDS(G.655)

Fiber count: Single fiber, 2 ~ 12 Ribbon fiber

Applicable fiber dimensions: Single: Cladding diameter 125㎛, Coating diameter 250, 900㎛; Ribbon: Cladding diameter 125㎛, Ribbon fiber thickness 0.25 to 0.40mm

Fiber cleave length: 10mm

Splicing modes: Splice mode: 300, Heat mode: 100

Average splice Loss: SM: 0.05dB, MM: 0.02dB, DS: 0.08dB, NZDS: 0.08dB

Return loss: > 60dB

Splicing time: Typical 16 sec with standard SM (ITU-T G.652)

Splice loss estimate: Available

Sleeve heating time: 1 ~ 2 core 20 sec, 4 ~ 12 core 50 sec

Applicable protection sleeve: 40mm, 60mm (Fiber), Micro

Storage of splice result: The last 10,000 results to be stored in the internal memory. (Image 10,000 results)

Tension test: 2N

Operating conditions: Altitude: 0 ~ 3,660m above sea level, Temperature: -10℃ ~ 50℃, Humidity: 0 ~ 95%, Wind: 15m/s, Non-condensing, Dust proof, Water proof, Shock proof

Storage conditions: Temperature: -40℃ ~ 80℃, Humidity: 0 ~ 95%

Dimensions: 130(W) ｘ158(L) ｘ126(H)mm (Excluding rubber)

Weight: 2.1kg (Including battery)

Viewing method and display: Two CMOS cameras and 5.0-inch color LCD monitor with Electrostatic touch screen

Fiber view and magnification: 20X, Max 60X

Power Supply: 100 ~ 240V

Battery life with heat-shrink: 125 cycles with 4,700mAh & 160 cycles with 6,000mAh

Electrode life: More than 1,500 splices

Terminals: USB, External Power(DC 12V available for car cigar jack), DC Output 13.2 ~ 16.8V

Standard Package

Arc Fusion Splicer: SWIFT KR12: 1

User guide: Download from UCLSwift Website:

Spare electrode: EI-28: 1 pair

Transporting Case: Hard Case: 1

Battery: 4,700mAh: 1

AC Adapter:  1

Fiber Holder: H7-Series: 1 pair

Cleaver: CI-03RT: 1

Manual stripper: IHS-12 (DC): 1

Alcohol dispenser:  1

Tool box:  1

USB Cable:  1

DC output Cable:  1

Sleeve Loader:  2
