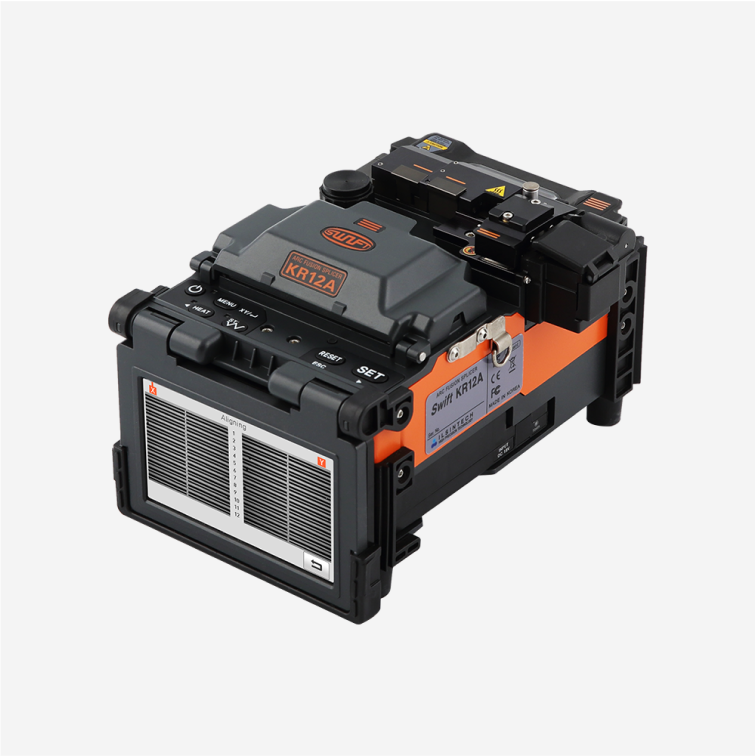

UCLswift KR12A Fusion Splicer

Performance Specifications

General

Fiber alignment: Ribbon

Applicable type of fibers: SM(G.652), MM(G.651), DS(G.653), NZDS(G.655)

Fiber count: Single fiber, 2 ~ 12 Ribbon fiber

Applicable fiber dimensions: Single: Cladding diameter 125㎛, Coating diameter 250, 900㎛; Ribbon: Cladding diameter 125㎛, Ribbon fiber thickness 0.25 to 0.40mm

Fiber cleave length: 10mm

Tension test: 2N / 4.4N (Option)

Storage of splice result: The last 10,000 results to be stored in the internal memory. (Image 10,000 results)

Applicable protection sleeve: 40mm, 60mm (Fiber)

Splicing Performance

Splicing time: Typical 20 sec with standard SM (ITU-T G.652)

Average splice loss: SM: 0.05dB, MM: 0.02dB, DS: 0.08dB, NZDS: 0.08dB

Return loss: >60dB

Splice loss estimate: Available

Splicing modes: Splice mode: 300, Heat mode: 100, Strip mode: 50

Sleeve heating time: 1 ~ 2 core 20 sec, 4 ~ 12 core 50 sec

Display & Viewing

Fiber view and magnification: 20X, Max 60X

Viewing method and display: Two CMOS cameras and 5.0-inch color LCD with electrostatic touchscreen

Power & Battery

Battery life with heat-shrink: 125 cycles with 4,700mAh & 160 cycles with 6,000mAh

Power supply: 100 ~ 240V

Cleaver blade life: Max. 6,200 fibers

Electrode life: Up to 1,500 splices

Cleaver: CM-03RT

Terminals: USB, External power (DC 12V available for car cigar jack)

Environmental & Physical

Storage condition

Temperature: -40°C ~ 80°C, Humidity: 0 ~ 95%

Operating condition

Altitude: 0 ~ 3,660m above sea level

Temperature: -10℃ ~ 50℃

Humidity: 0 ~ 95%, Wind: 15m/s

Non-condensing, Dust proof, Water proof, Shock proo

Dimensions and weight: 136(W) x 215(L) x 132(H)mm (Excluding rubber); 2.3kg (Including battery)

Standard Package

Arc Fusion Splicer: SWIFT KR12A: 1

User Guide: Download: uclswift.com:

Spare Electrode: EI-28: 1 pair

Cooling Tray: : 1

Transporting Case: Hard Case: 1

Battery: 4,700mAh: 1

AC Adapter:  1

Fiber Holder: H7-Series: 1 pair

Tool Box:  1

USB Cable:  1

Sleeve Loader: 2
