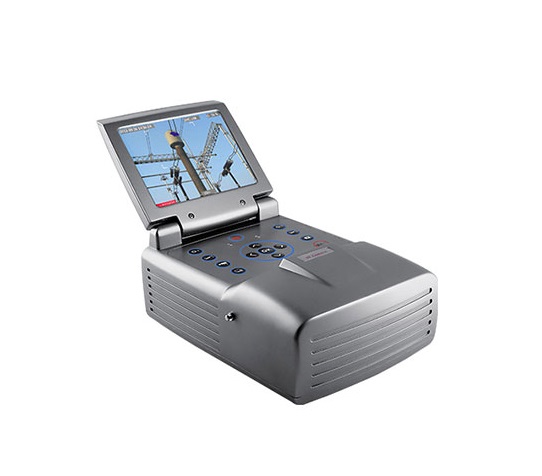

Ulirvision TD90 Corona Camera (≤2.2x10-18watt/cm², 2m~∞)

UV – Optical Properties:

Minimum UV sensitivity: ≤2.2 x 10-18watt/cm²

Minimum discharge detection: 1pC @ 10 meters

Spectral range: 240-280nm

FOV: 5.5° x 4.0°

Focus: Auto/Manual

Focus range: 2m~∞

Detector life span: No degradation

Visible – Optical properties:

Visible light sensitivity: 0.1 Lux

Focus: Auto/Manual

Zoom: 12x(Digital), 10x(Optical)

Image Performance:

Image Display: 5.7” VGA color transflective sunlight readable LCD, folding 640×480

UV image enhancements: Digital Filtering denoising

Image frozen: Freeze the real time image

Frequency: 50Hz

Modes: Combined (UV & visible), UV only, Visible only

Video standard: PAL/NTSC

Image Storage:

Image format: JPG

Video format: AVI

Media download: Via Card Reader, USB

Audio format: WAV

Playback: Video/Pictures/Audio

SD card: 8G SD card, 64G SD card optional

Storage capacity: 8000 images or 4 hr video

Power System:

External power AC: 110V-240V / DC: 50-60Hz/9V 4A

Battery type: Rechargeable Li-Ion

Operation runtime: 2h

Charge: Online charging or charger

Power consumption: ≤10W

Power saving: Yes

Environmental Data:

Operation temp range: -10 ℃~+50℃

Storage temp range: -25 ℃~+60℃

Humidity: ≤95% (non-condense)

Physical Characteristics

Size: 238mm×165mm×91mm

Weight: ≤2.5kg

Packing:

Standard: Corona Camera UVSee TD90，AC power adapter，2pcs Li-ion battery，charger，SD card，SD card reader，video cable，CDROM ( UVSee software and Manual), Warranty card, Strap, transport case, USB Cable

Option: Tripod
